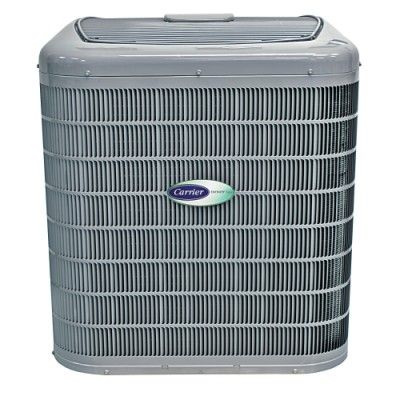

Carrier 5 Ton, 26 SEER, Air Conditioner Condenser, Variable Speed, 208/1

Infinity® Variable Speed Air Conditioner With Greenspeed™ Intelligence 2 To 5 Nominal Tons

Carrier’s 24VNA6 with Greenspeed™ Intelligence is a variable speed
cooling product providing up to 26 SEER cooling efficiency. Lower
speed operation, when needed in cooling, for enhanced comfort and
dehumidification.

This product has been designed and manufactured to meet Energy Star®
criteria for energy efficiency when matched with appropriate coil
components. Refer to the combination ratings in this Product Data for
system combinations that meet Energy Star guidlines.
NOTE: Ratings contained in this document are subject to change at any
time. Always refer to the AHRI directory (www.ahridirectory.org) for
the most up-to-date ratings information.

Industry leading Features / Benefits
Energy Efficiency
• Up to 26 SEER, 16.5 EER
• Microtube Technology™ refrigeration system
• Indoor air quality accessories available

Sound
• Sound level as low as 51 dBA in low speed

Comfort
• Variable speed compressor with capacity range from 25-100%
• Air cooled Inverter variable speed drive
– System requires Infinity Control with Greenspeed capability
– Energy Tracking capability with the Infinity Control with latest
software version
(Energy Tracking has the ability to monitor and estimate the energy
consumption of your Infinity system.)

Reliability
• Non-ozone depleting Puron® refrigerant
• Front-seating service valves
• Greenspeed Intelligence actively monitors critical system parameters
• High pressure switch
• Discharge and suction pressure transducer
• TXV for cooling
• Filter drier (field installed)
• Internal crankcase heater standard
Flexibility and installation:
• 2 control wires to outdoor unit
• Minimum and maximum airflow adjustments

Durability
• WeatherArmor Ultra™ protection package:
• Solid, Durable sheet metal construction
• Steel louver coil guard
• Baked-on, complete outer coverage, powder paint

Applications
• Long-line - up to 250 feet (76.2 m) total equivalent length, up to 200
feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m)
evaporator above condenser (See Longline Guide for more
information.)
