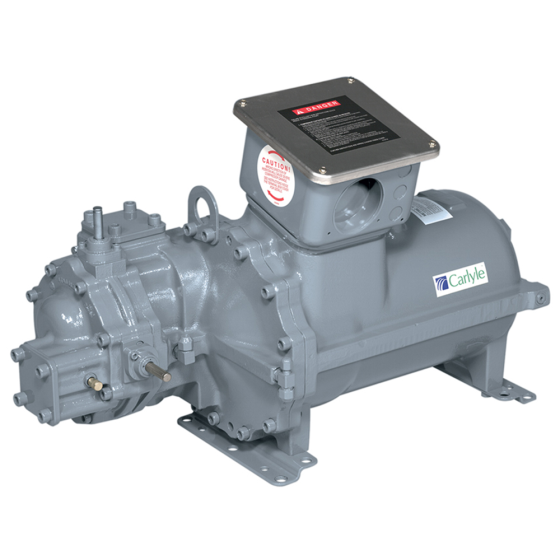

Semi-Hermetic 74mm Geared Twin Screw Compressor, 88CFM, 460Vac (XL, PW), Three Phase
Item
06TAK088B2EA-A00
FEATURES & BENEFITS
• Compressor Package: Air Cooled Condensing• Voltage: 460Vac (XL, PW)
• Three Phase
• Hertz: 60
• Maximum Displacement (CFM): 88
• Carlyle screw compressors are approved for use with R-448A, R-449A, R-404A, R-507, R-134a, and R-22 refrigerants
• Carlyle screw compressors are approved for use with the following oils:
CPI - Solest 120, Solest 170
Lubrizol - Emkarate RL100E
For application purposes the Solest 120 is considered an equivalent viscosity at the Emkarate RL100E. The Solest 170 is required for R-22 systems without external oil coolers. R-22 systems with an external oil cooler may use the POE 100/120 weight oils.
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | Voltage | 460 |
| Specification | |
|---|---|
| Max Displacement (CFM) | 88 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 419 | Exterior Dimensions (D) (inches) | 25.000000 | Exterior Dimensions (W) (inches) | 33.000000 | Exterior Dimensions (H) (inches) | 25.000000 | Shipping Weight (lbs) | 419.000000 |
