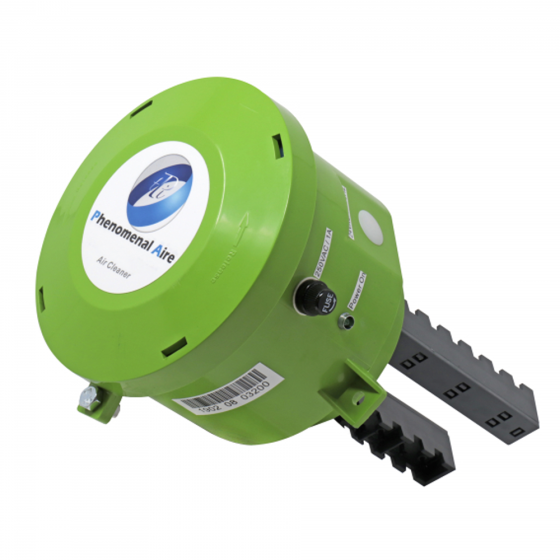

Series C 6.0 Cold Plasma Generator 24Vac, 6,000CFM, 3B Ions

APPLICATIONS

Ideal for air handlers, rooftop units, and package units. Rated for systems up to 6,000 CFM (15 tons).

FEATURES & BENEFITS

• Air Flow Capacity: 0 to 6,000 CFM
• Area of Coil Face Coverage: 4’ x 4’
• Voltage: 24Vac
• Power Consumption: 12Va
• 60 Hertz
• Pressure Drop: < 0.05” W.C.
• Needlepoint Probe Length: 6”
• Electrode Material: Carbon Resin
• Temperature Range: -20 °F to 140 °F
• Ionization Generation: Needlepoint Bi-Polar
• Ion Generation: 360m cc/sec per inch of Stinger™ (3 Billion per second)
• Ion Status: Green Light
• Humidity Range: 0-99%
• Mounting Box Material: ABS UL 94 Plastic
• UV Weatherization Coating for Exterior Mounting
• Optional BAS Alarm Signal
• Power Head Dimensions: 5” Diameter x 3.5” Height
• Weight: 5lbs.
• Warranty: Standard 1 Year (3 years with electronic registration)
