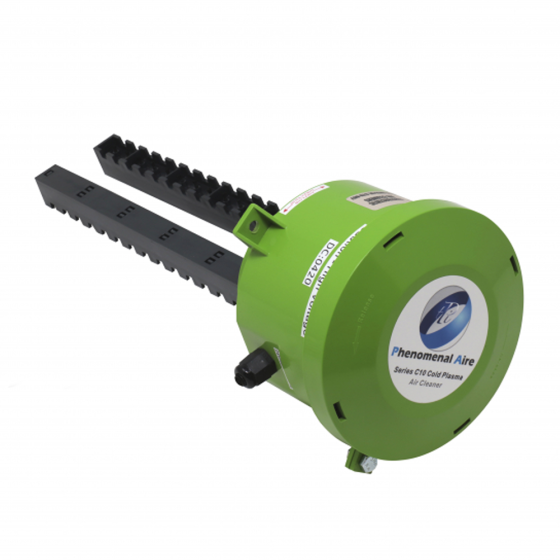

Ideal for air handlers, rooftop units, and package units. Rated for systems up to 10,000 CFM (25 tons).
FEATURES & BENEFITS
• Air Flow Capacity: 6,000 to 10,000 CFM • Area of Coil Face Coverage: 6’ x 6’ • Voltage: 24Vac • Power Consumption: 12Va • 60 Hertz • Pressure Drop: < 0.05” W.C. • Needlepoint Probe Length: 10” • Electrode Material: Carbon Resin • Temperature Range: -20 °F to 140 °F • Ionization Generation: Needlepoint Bi-Polar • Ion Generation: 360m cc/sec per inch of Stinger™ (6 Billion per second) • Ion Status: Green Light • Humidity Range: 0-99% • Mounting Box Material: ABS UL 94 Plastic • UV Weatherization Coating for Exterior Mounting • Optional BAS Alarm Signal • Power Head Dimensions: 5” Diameter x 3.5” Height • Weight: 5lbs. • Warranty: Standard 1 Year (3 years with electronic registration)
