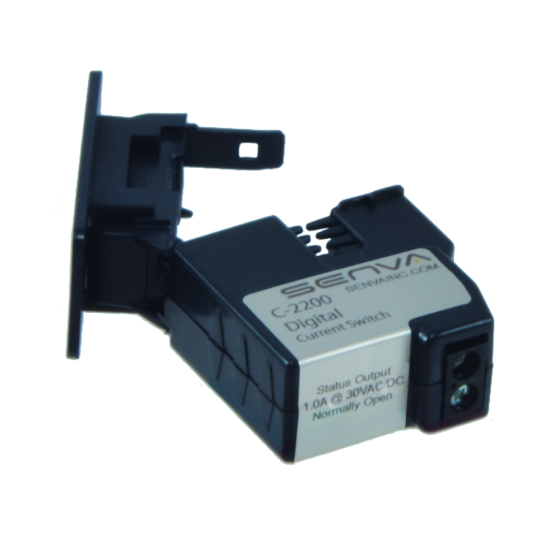

Tiny Split-Core Fixed Current Switch, 0.5A-50A, Terminals

Item
C-2220
  • California Prop 65

FEATURES & BENEFITS

• Amperage Range: 0.5A (on)-50A (50A Max)
• Output Type: NO, solid-state FET
• Output Rating: 1.0A@30VAC/DC Max.
• Temperature Rating: -15 to 60 ° C
• Insulation Class 600V RMS. For use on insulated conductors only! Use minimum 75 ° C insulated conductor
• Sensor Power: Induced
• Frequency Range: 50/60Hz
• Dimensions: ( LxWxH) 1.9” x 1.35” x 0.6” (2.0” x 1.6” x 0.6” with bracket)
• Sensor Aperture: 0.375”

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 24.000000
Exterior Dimensions (W) (inches) 3.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 5.000000
