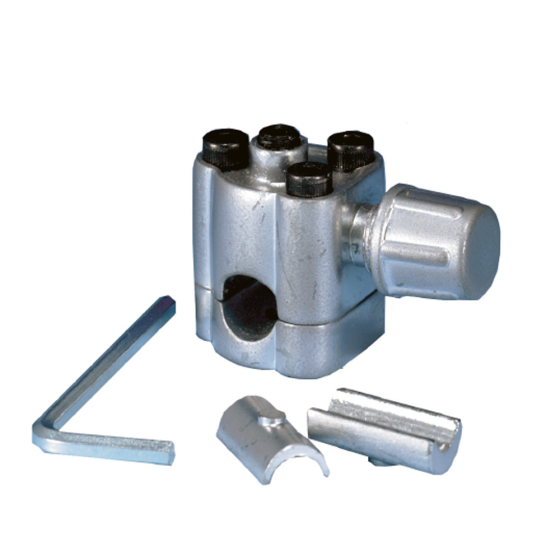

Supco® Bullet Piercing Valve 1/2 in. & 5/8 in.
Item
BPV21
FEATURES & BENEFITS
• The only valve with a permanent gasket to provide 50 times more sealing area then standard O-ring type valves. Safe for use on the LOW SIDE of R410 systems.
• 500 PSI Maximum pressure
• Corrosion resistant
• Hex key wrench included
• Non-positional mounting, no adapter valve required
• Patented valve gasket provides 50 times more sealing area than competitive 'O' ring types
• Piercing needle is engineered for concentricity and hardness to insure perfect seating every time
• Requires only 2 in. clearance for installation and operation
• Max. PSI: 500PSI
• OD size: ½ in. and ⅝ in.
• Connection: ¼ in. Male Flare (0.25 in.)
• Material: Zinc
Safety Standards | |
---|---|
California Prop 65 | Yes |
Specification | |
---|---|
Connection Size | 1/2 in., 5/8 in. |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 0.1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.100000 |
