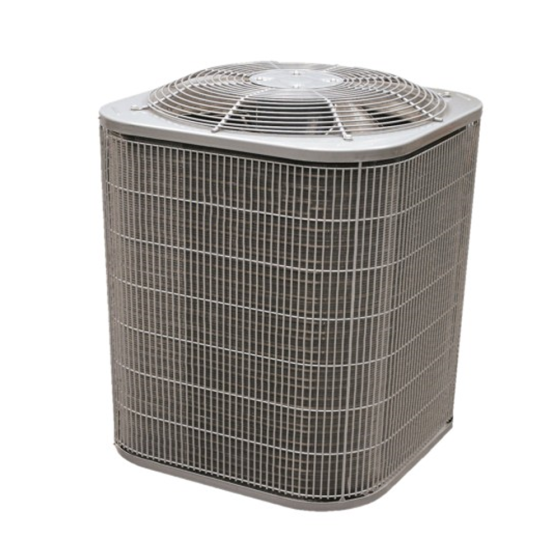

Builder Series 2.5 Ton, 13.4-16 SEER2, Single Stage, Air Conditioner, 208/1

Item
GA4SAN43000N
  • California Prop 65

INDUSTRY LEADING FEATURES / BENEFITS

Efficiency
• 13.4 - 16.0 SEER2 (13.5 - 16.5 SEER) / 11.0 – 13.5 EER2 (11.0 - 14.5 EER)
• Indoor air quality accessories available

Reliability
• Puron refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
• Scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Filter drier
Durability
Protection Package:
• Solid, durable sheet metal construction
• Dense wire coil guard

Applications
• Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
• Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.

This unit has been designed utilizing Puron® refrigerant. This environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer.
NOTE: :Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information

Electrical
FLA 0.75
Hertz 60
LRA 64.3
MCA 15.6
MOCP 25
Phase 1
RLA 11.8
Voltage 208/230
Safety Standards
California Prop 65 Yes
Energy Star Rated No
Specification
Tonnage 2.5
Suction Line Size 3/4
Suction Line Fitting sweat
Sound Level 73
Rows/FPI 25
Rows 1
Refrigerant R-410A
Metering Device TXV
Max Piping Length 250 ft.
Compressor Sound Blanket No
Liquid Line Size 3/8
Liquid Line Fitting sweat
Inverter No
Cooling Stages 1
Condenser RPM 1100
Condenser Motor HP 1/10
Condenser Air Flow Vertical
Compressor Type Scroll
Weights and Dimensions
Operating Weight (lbs) 138
Exterior Dimensions (D) (inches) 31.187500
Exterior Dimensions (W) (inches) 31.187500
Exterior Dimensions (H) (inches) 31.687500
Shipping Weight (lbs) 160.000000
Warranty
Compressor Warranty 10 Year (When Registered in Residential Application)
Parts Warranty 10 Year (When Registered in Residential Application)
General
Tier Builder
