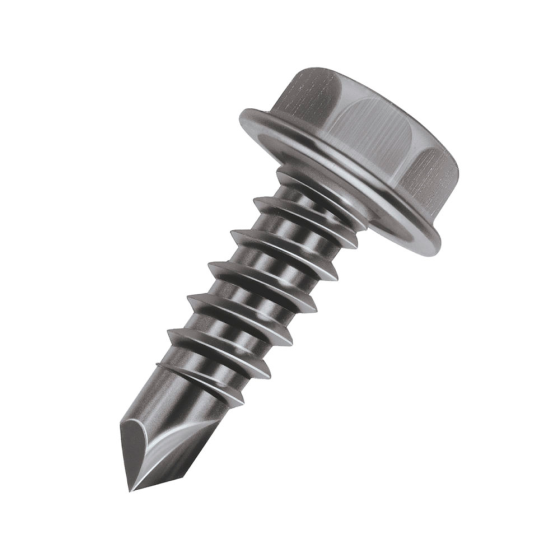

Malco® Bit-Tip® Screws with Drill Point, 5/16 in. Hex Head, 1 in. in. L, #10 (500 pk)

Item
BT144T
  • California Prop 65

APPLICATIONS

By drilling its own hole, Bit-Tip® Drill and Tap Screws produces the optimum hole size, resulting in better thread engagement and a tighter fit. One operation fastening also means no alignment problems.

Bit-Tip® has a wide range of industry applications. Select the Bit-Tip® that’s right for the job. Point length will determine metal thickness that can be drilled, tapped and fastened. Also, plywood, soft wood, composition board, drywall, insulation and laminates may be fastened to metal framing or components.

Made from strong, high quality, specially heat-treated steel. Bit-Tip® Self Drilling and Tapping Screws are precision cold forged insuring uniformity of dimension and drill point contours.

The versatile Bit-Tip® Screw is an excellent replacement for fastening operations now using rivets, nuts and bolts, spot welds or adhesives. Bit-Tip® also eliminates the need for costly auxiliary fastening equipment such as drill bits, taps and welding equipment.

Requires only a standard screw gun power tool rated at 2500 RPM equipped with drilling depth locator.

FEATURES & BENEFITS

• Head Type: Hex
• Screw Size: 10-16x1
• Driver Size: 5/16
• Material Thickness: .110-.175

Specification
Length 1 in.
Head Hex
Head Size 5/16"
Point Drill Point
Thread Size #10
Threads Per Inch 16
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3.6
Exterior Dimensions (D) (inches) 4.500000
Exterior Dimensions (W) (inches) 4.500000
Exterior Dimensions (H) (inches) 5.250000
Shipping Weight (lbs) 7.000000
