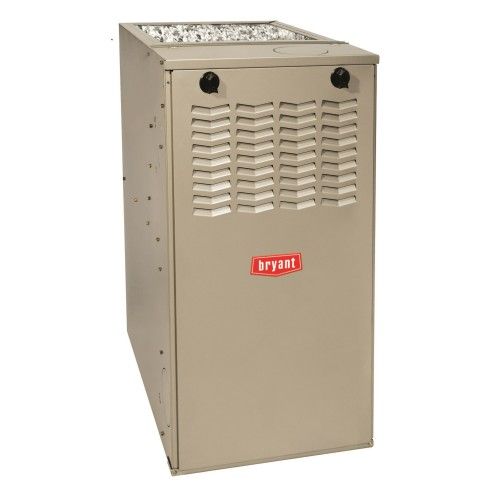

Bryant Preferred™ Multipoise Furnace, 80% AFUE, Variable Stage, Low NOx, 115/1

The 820SB/821SB 4-way Multipoise Gas Furnaces feature Bryant’s QuieTech™ noise reduction system for quiet induced draft operation. Applications are easy with 4-way multipoise design,

through-the-furnace downflow venting, 13 different venting options, and easy service access. An inner blower door is provided for tighter sealing in sensitive applications. The 820SB/821SB furnaces are factory shipped for use with natural gas and convertible to propane with approved accessory kit. The 821SB - Low NOx units are designed for California installations and meet 40 ng/J NOx emission limits. Can be installed in air quality management districts with a 40 ng/J NOx emissions limit.

PERFORMANCE

• Single Stage gas valve
• Variable 25-speed, constant torque (VCT) ECM blower motor • QuieTech™ noise reduction system
• Microprocessor based “smart” control center Fan on Plus™ - Continuous Fan speed adjustable from thermostat
• Enhanced diagnostics with easy to read 3 digit display for faults and status and reflective sight glass, non-volatile fault code memory, and self test feature
• Adjustable heating air temperature rise
• Adjustable cooling airflow
• Perfect Light™ Igniter
• Patented blocked vent safeguard to ensure proper furnace venting
• Inner blower door for tighter sealing

INSTALLATION FLEXIBILITY

• 4-way Multipoise furnace, 13 vent applications
• On-board NFC antenna makes setup a tap away when using the Bryant service technician app.
• HYBRIDHEAT® Dual Fuel System compatible
• All models are chimney friendly when used with accessory vent kit

APPLICATIONS

• Compact design - only 33-1/3 in. (847 mm) tall
• Propane convertible with gas conversion accessory
• Convenient Air Purifier and Humidifier connections CERTIFICATON
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet airleakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193
• Residential installations eligible for consumer financing through the Retail Credit Program

LIMITED WARRANTY

• Default 5-year parts limited warranty
• 20-year heat exchanger limited warranty 10-year parts limited warranty with timely registration* Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.

* Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where laws dictate otherwise.

InteliSense

This furnace is InteliSense capable when used with an ecobee for Bryant smart thermostat with InteliSense technology. InteliSense technology allows for the collection of performance data to be sent to the cloud. Utilizing Bryant’s digital tools, dealers can gather system settings and equipment data, with homeowner opt-in, to provide quicker and more efficient service.
