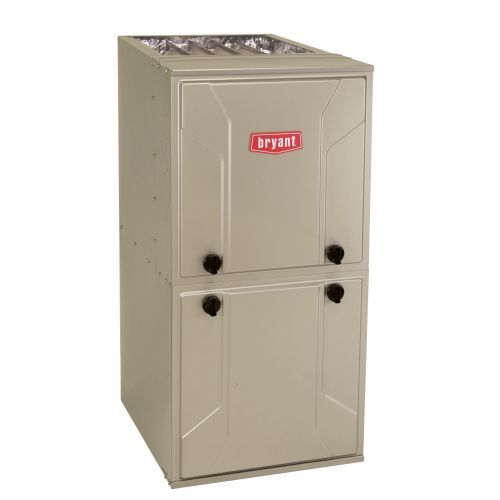

Bryant Evolution Multipoise Furnace, 95% AFUE, Single-Stage Heating, Variable Speed (VCA), Ultra Low Nox (SCAQMD/SJVAPCD Compliant), 115/1

The 935CA Evolution® Ultra-Low NOx gas furnace delivers consumer
comfort in a unit that meets California’s South Coast Air Quality
Management District (SCAQMD) and San Joaquin Valley Air pollution
Control District (SJVAPCD) NOx emissions limit of 14ng/J. Offering
the performance and benefits of our Evolution Line gas furnaces, this
furnace releases 65% less nitrogen oxides (NOx) than previous models.
NOx contributes to the formation of smog and acid rain and the
deterioration of water quality. Lower NOx emissions mean lower
production of particulate matter and cleaner air for the environment.
Energy efficiency is at the heart of this furnace with up to 95.0% AFUE
gas efficiency and the electrically-efficient Evolution communicating
variable-speed constant airflow ECM blower motor. This gas furnace
also features Upflow/Horizontal installation flexibility, and is available
in three model sizes. All sizes can be vented for direct vent/two-pipe,
ventilated combustion air, or single-pipe applications.

PERFORMANCE
• Communicating Variable speed, Constant airflow (VCA) ECM
blower motor for electrically efficient operation all year long in
heating, cooling and continuous fan operation.
• Single-stage gas valve with pre-mix burner
• Pilot free, hot surface ignition
• Variable-speed inducer motor for consistent operation
• Supports single-stage, two-stage, and variable speed cooling units
• High temperature limit control designed to prevent overheating
• Adjustable blower speed for heating, cooling, continuous fan, and
dehumidification
• Stainless-steel primary heat exchanger
• Fully-insulated casing including blower section
• Stainless-steel condensing secondary heat exchanger
INSTALLATION FLEXIBILITY
• Upflow/Horizontal design for upflow, horizontal right or horizontal
left installation, with rotating vent elbow for exhaust venting
flexibility
• Factory-configured ready for upflow applications.
• Features a condensate trap with 6-3/8” (7-3/8” recommended)
clearance in horizontal applications
• Ideal height 35” (889 mm) cabinet: short enough for taller coils, but
still allows enough room for service.
• Two-pipe venting, single-pipe venting or ventilated combustion air.
APPLICATIONS
• Factory-configured for Natural Gas; not convertible to Liquid
Propane.
• Not approved for downflow installation
• Approved for installations up to 5,400 ft.
CERTIFICATES
• All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces:
95%+ AFUE
• Ultra Low NOx - meets the nitrogen oxides (NOx) emission limit of
14 nanograms/joule for the South Coast Air Quality Management
District and San Joaquin Valley Air Pollution Control District in
California
• Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air
leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with
ASHRAE standard 193.
