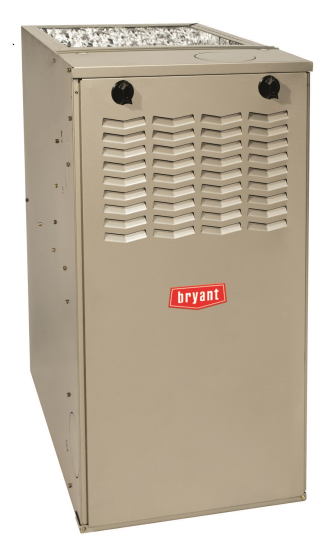

Bryant Legacy Multipoise Furnace, 80% AFUE, 80,000 BTU, Communicating Ultra-Low NOx,(SCAQMD/SJVAPCD Compliant), 115/1

EVOLUTION® 80 ULTRA LOW NOx GAS FURNACE

The 830CA delivers home comfort in an 80% AFUE furnace that meets the nitrogen oxides (NOx) emission limit of 14 nanograms/joule for South Coast Air Quality Management District and San Joaquin Valley Air Pollution Control District in California. It provides warm winter heating with 65% lower NOx emissions than standard models. The Evolution® 80 Ultra Low NOx Gas Furnaces offers a number of comfort-enhancing features with its variable-speed, fully communicating blower motor. FanOnPlus™ technology selectable fan speeds allows control over ventilation. SmartEvap™ technology provides humidity control during cooling operation, and with select outdoor units, Perfect Humidity™ technology provides significantly better dehumidification. And, when paired with a two-speed or variable-speed outdoor unit, homeowners will enjoy consistent summer comfort.

STANDARD FEATURES

Efficiency

• 80% AFUE.
• 40K, 60K, 80K, 100K Btu/h capacities.
• Ultra-low NOx emissions - 830CA meets the nitrogen oxides (NOx) emission limit of 14 nanograms/joule for the South Coast Air Quality Management District and San Joaquin Valley Air Pollution Control District in California.

Technology

• Single-stage gas valve.
• Variable speed constant airflow ECM blower motor.
• Pre-mix burner with pilot free, hot surface ignition.
• Variable speed inducer motor.
• Stainless steel, tubular heat exchanger.

Performance

• Integral part of the PerfectHumidity System:
       - Maximum dehumidification selection for summer time cooling.
       - Full PerfectHumidity benefits including “Super Dehumidify” SmartEvap™ Humidity control when using a Thermidistat™ / Evolution™ control.
• SmartEvap™ can lower the humidity level in the home by nearly 10 percent.
• Perfect Light™ Ignitor.
• Microprocessor based control center:
      - Enhanced diagnostics with LED and reflective sight glass Stores fault codes during power outages.
      - Adjustable heating air temperature rise.
      - Adjustable heating and cooling airflow.
      - Dehumidification selection for summer-time cooling.
• Draft Safeguard switch designed to ensure proper furnace venting.
• Insulated blower compartment.
• Inner door for tighter sealing.
• HYBRID HEAT® Dual Fuel System compatible.

Design and Installation

• Approved for installation up to 5,400 feet.
• Versatile venting for tight-fit applications.
• Factory shipped for natural gas, not convertible to propane.
• Four-position furnace: Upflow, Horizontal Right, Horizontal Left, Downflow. (with 6 different vent options)
• Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193.
