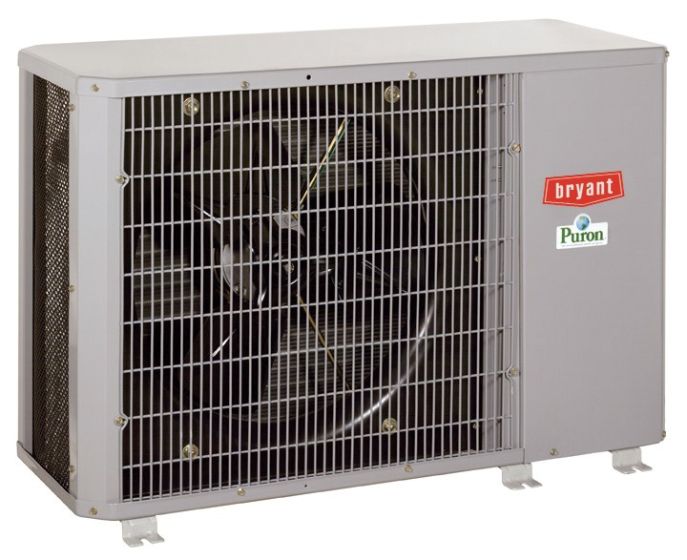

Bryant 2.5 Ton, 13.8-16 SEER, Horizontal Discharge, Single Stage, Air Conditioner, 208/1

Item
315SAN03000W
  • California Prop 65

INDUSTRY LEADING FEATURES / BENEFITS

FEATURES & BENEFITS

  • Ultra-compact for small spaces and for stacking in multi-family housing
  • Enjoy cool summer comfort with Up to 16 SEER2 and up to 13 EER2 efficiency
  • Quiet performance with sound as low as 65 dB
  • Enjoy energy savings, remote access capability and in-depth energy reporting with the ecobee smart thermostat powered by Bryant.
  • 10-year parts limited warranty upon registration1

On January 1, 2023, the Department of Energy (DOE) will require new testing procedures for developing efficiency ratings on split system air conditioners. Products that have gone through these updated testing procedures will display SEER2 and EER2 ratings, in addition to the older SEER/EER ratings. The 2023 testing procedures are more stringent and will result in lower efficiency ratings compared to the older ratings. As we transition all our products to these new testing procedures, we'll publish both ratings on our air conditioners category page for better comparison.

Energy Efficiency
• 13.8 - 16.0 SEER2 / 11.2 - 13.0 EER2
• Levels as low as 65 dBA
Design Features
• Small footprint
• DuraGuard cabinet
– All steel cabinet construction
– Mesh coil guard
Reliability, Quality and Toughness
• Scroll compressor
• Factory-supplied filter drier
• High pressure switch
• Line lengths up to 250ft (76.2m)
• Low ambient cooling (down to 0°F / -18°C) with approved low ambient accessory kits.

This unit has been designed utilizing Puron® refrigerant. This environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer.
NOTE: :Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information

Electrical
FLA 0.7
Hertz 60
LRA 65
MCA 16.7
MOCP 25
Phase 1
RLA 12.8
Voltage 208/230
Safety Standards
California Prop 65 Yes
Specification
Tonnage 2.5
Suction Line Fitting Sweat
Stages 1
Refrigerant R-410A
Metering Device TXV
Liquid Line Size 3/8
Liquid Line Fitting Sweat
Inverter No
Cooling Stages 1
Condenser Air Flow Horizontal
Compressor Type Scroll
Weights and Dimensions
Operating Weight (lbs) 189
Exterior Dimensions (D) (inches) 44.500000
Exterior Dimensions (W) (inches) 17.062500
Exterior Dimensions (H) (inches) 37.125000
Shipping Weight (lbs) 212.000000
Warranty
Compressor Warranty 10 Year (When Registered in Residential Application)
Parts Warranty 10 Year (When Registered in Residential Application)
General
Tier Preferred
