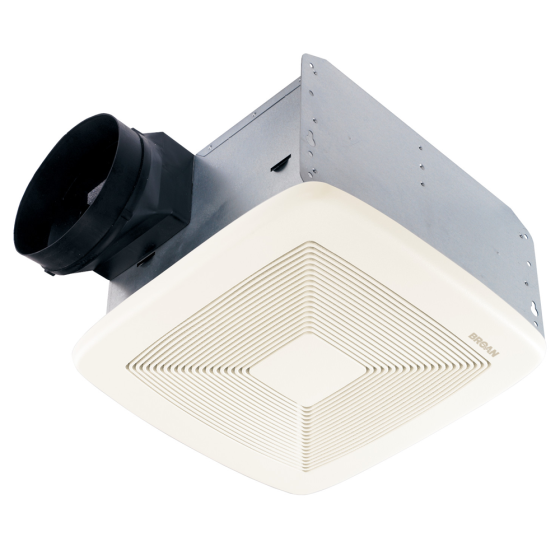

Broane® ENERGY STAR® Certified Ventilation Fan with 6 in. Round Duct, 80CFM, 0.3 Sones, 120Vac

FEATURES

The Broan® QTX Series Very Quiet 80 CFM Ceiling Exhaust Bath Fan, ENERGY STAR® Certified is designed to help reduce moisture to help prevent mildew from forming in your bathroom. The fan runs at only 0.3 sones for a very quiet operation and it is ENERGY STAR® certified for energy efficiency. The fan can be hung over a tub or shower with a GFCI circuit. Hanger bars are included for easy and fast installation.

• 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
• 0.3 Sones for Ultra quiet performance, you might not notice it's on
• Includes hanger bar system for fast, flexible installation for all types of construction
• Fits 2" x 8" ceiling construction
• UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
• Features 6" ducting for superior performance
• ENERGY STAR®-certified ventilation fan
• Powerful enough for rooms up to 75 sq. ft.
• Brighter white grilles blend in to match most common ceiling paint
• Corrosion resistant galvanized steel housing stands up to moisture
• Permanently lubricated AC motor engineered for continuous operation

SPECIFICATIONS

BLOWER
• Plug-in, permanently lubricated motor - engineered for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet, efficient performance
• Maintains a high percentage of rated CFM in less than ideal installations
• Low RPM for quiet operation

HOUSING
• Rugged, galvanized steel construction
• 6” round ducting for superior performance
• Polymeric duct connector with tapered sleeve and no metallic clatter
• 7-5/8” height allows for 2” x 8” (nominal) joist installations
• Sturdy, easy, four-point mounting directly to joist
• Includes unique, patented spacer for mounting to engineered “I” joists
• Includes hanger bars to position housing anywhere between 16” to 24”-on-center joists
• Two sets of mounting holes for hanger bars allow flush installation with bottom or top of drywall
Can be mounted in ceilings up to 12/12 pitch

GRILLE
• Polymeric construction
• Innovative design - the result of extensive research with designers and consumers

• CFM: 80
• Color Finish: White
• Duct Size: 6” Round
• ENERGY STAR® Certified
• Grille Length: 13
• Grille Width: 13.75
• Housing Dimensions: 10-1/2" x 11-3/8" x 7-5/8"
• Sound Level (Sones): 0.3
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Heater Wattage: 0
• Recommended Room Size (Sq Ft): 75
• Rated Amps: 0.2
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Minimum Construction Space Required: 2" x 8"
• Manufacturer Warranty: 3 Years
• High Efficiency Luminaire: No
