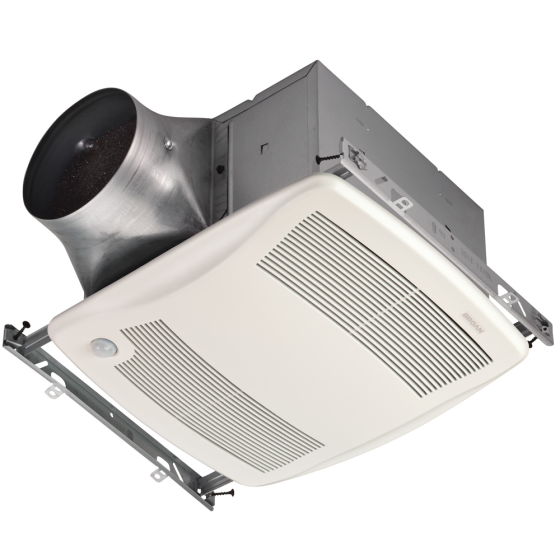

The Broan® ZB80M ULTRA GREEN™ ENERGY STAR® Certified Motion Sensing Exhaust Bath Fan, delivers everything you wished for in a bath fan - premium ventilation to help reduce airborne pollutants, ease of installation, energy efficiency, consistent power, extremely quiet operation and multi-speed capability. ULTRASense™, Motion Sensing Technology, offers a hands-free solution for maximum convenience. The fan will increase to maximum speed from the lower, continuous setting when motion is detected - which is ideal for family members who forget to turn the fan on - and will stay on the max setting for the user-set 5-minutes to 60-minutes period after no motion is detected, before falling back to the continuous setting.
FEATURES & BENEFITS
• CFM (@ 0.1 SP): 30/40/50/60/70/80 • Duct Size: 6" Round (4" Reducer Included) • ENERGY STAR® certified: Yes • Grille Length: 13.125 • Grille Width: 14 • Housing Dimensions: 10-1/2" x 11-3/8" x 7-5/8" • Sound Level (Sones): 0.3 • UL Listed: Yes • Grille Finish: White • Humidity Sensing: No • Motion Sensing: Yes • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: Yes • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes • Recommended Room Size (Sq Ft): 75 • Rated Amps: 0.3 • Voltage: 120 • Can Be Used to Comply with Title 24: Yes • Minimum Construction Space Required: 2" x 8" • Manufacturer Warranty: 3 Years • High Efficiency Luminaire: No
ULTRASMART™ DC Motor and Control Technology • DC motor for efficiency well beyond ENERGY STAR® requirements. • Multi-speed capability ideal for meeting ASHRAE 62.2, LEED and ENERGY STAR® for Homes requirements. Can be used to comply with CA Title 24, as well as local/spot ventilation needs. • Powerful operation maintained over a wide range of real-world installations (CFM ratings maintained through at least 0.25” static pressure). • Infinitely adjustable low cfm setting allows precise adjustment to prevent over-ventilating and maximize efficiency. • Adjustable time delay sets how long fan will run on high speed before returning to a continuous lower speed. • Rated for Continuous Operation.
ULTRASILENT™ Sound Technology • HVI certified, best-achievable 0.3 Sone level provides nearly silent operation for a relaxing environment. • State-of-the-art blower and duct outlet design smooths airflow. • High tech DC motor designed for nearly silent operation.
ULTRAQUICK™ Installation Technology • Unique telescoping mounting frame fits through retrofit drywall opening to allow easy installation from the room side. No attic access needed! • Captive screws allow for easy new construction installation. • Mounting frame positioning tabs provide easy vertical positioning for new construction. • Easy to insert and remove snap-in housing. No screws required! • Easy to insert and remove snap-in blower. • Inside or outside duct connector and knockout plate mounting provides flexibility for new construction or retrofit.
ULTRASENSE™ Motion Sensing Technology • Detects motion at the ceiling where coverage may be improved over wall-mounted sensor. • Automatically switches fan to maximum airflow (CFM) when motion is detected. • After motion is not detected, fan operates at maximum airflow (CFM) until UltraSmart™ user adjustable (5 to 60 minutes) time delay set point is reached then fan reduces to continuous airflow (CFM) level. • U.L. Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only). • Use only ON/OFF switch, mechanical timer or relay-switched control.
