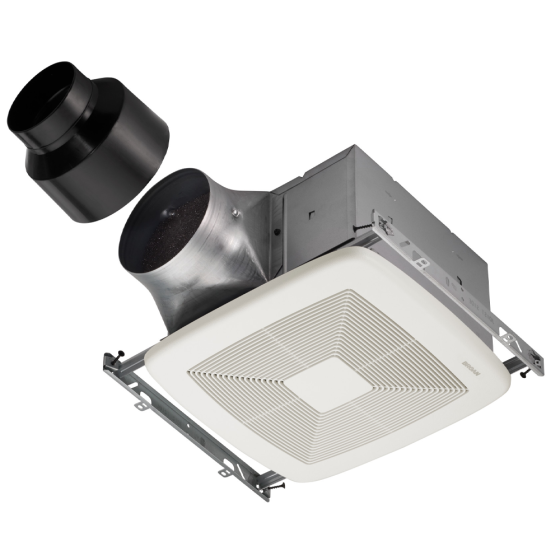

Broan's XB80 ULTRA GREEN™ ENERGY STAR® Certified Ceiling Bathroom Ventilation Fan delivers everything you wished for in a bath fan. Premium ventilation helps reduce airborne pollutants. It has extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for spot ventilation in humid bathrooms. They also work well providing continuous ventilation to meet various building codes and Green Building standards around the United States.
FEATURES & BENEFITS
• 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths • 0.3 Sones for Ultra quiet performance, you might not notice it's on • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws • Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation • Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC) • Powerful enough for rooms up to 75 sq. ft. • Brighter white grilles blend in to match most common ceiling paint • Corrosion resistant galvanized steel housing stands up to moisture • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation • Includes 6 in. to 4 in. duct reducer for increased installation options • CFM (@ 0.1 SP): 80 • Duct Size: 6" Round( • ENERGY STAR® certified: Yes • Grille Length: 13 • Grille Width: 13.75 • Housing Dimensions: 10-1/2" x 11-3/8" x 7-5/8" • Sound Level (Sones): 0.3 • UL Listed: Yes • Grille Finish: White • Humidity Sensing: No • Motion Sensing: No • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: Yes • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes • Recommended Room Size (Sq Ft): 75 • Rated Amps: 0.3 • Voltage: 120 • Can Be Used to Comply with Title 24: Yes • Minimum Construction Space Required: 2" x 8" • Manufacturer Warranty: 3 Years • High Efficiency Luminaire: No
ULTRASMART™ DC Motor and Control Technology • DC motor for efficiency well beyond ENERGY STAR® requirements. • Can be used to comply with ASHRAE 62.2, LEED, ENERGY STAR® for Homes and CA Title 24. • Powerful operation maintained over a wide range of real- world installations (CFM ratings maintained through at least 0.25” static pressure). • Rated for Continuous Operation.
ULTRASILENT™ Sound Technology • HVI certified, best-achievable 0.3 Sone level provides nearly silent operation for a relaxing environment. • State-of-the-art blower and duct outlet design smooths airflow. • High tech DC motor designed for nearly silent operation.
ULTRAQUICK™ Installation Technology • Unique telescoping mounting frame fits through retrofit drywall opening to allow easy installation from the room side. No attic access needed! • Captive screws allow for easy new construction installation. • Mounting frame positioning tabs provide easy vertical positioning for new construction. • Easy to insert and remove snap-in housing. No screws required! • Easy to insert and remove snap-in blower. • Inside or outside duct connector and knockout plate mounting provides flexibility for new construction or retrofit. • cULus Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only). • Use only ON/OFF switch, mechanical timer or relay-switched control.
