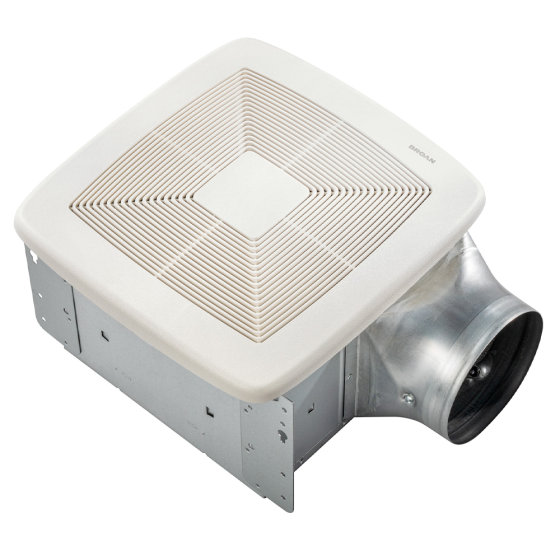

The Broan® QTXE Series bathroom ceiling exhaust fan delivers powerful, quiet ventilation and is ENERGY STAR® Certified. With an 80 CFM, this fan efficiently removes moisture, reducing the risk of mold and mildew in most full bathrooms up to 75 sq. ft. Operating at just 0.4 sones, it’s as quiet as a whisper, ensuring tranquility in your home. Our easy install hanger bar system allows for quick installation in any type of ceiling construction, including 2” x 8” setups. Built to withstand moisture, the corrosion-resistant galvanized steel housing and permanently lubricated AC motor offer durability and reliability. Plus, with 6” ducting for optimal performance and a subtle, bright white grille that blends seamlessly with your ceiling, this fan is the perfect solution for a fresher, healthier bathroom. Safe for use over bathtubs or showers when connected to a GFCI circuit, this exhaust fan brings energy savings and improved indoor air quality.
• 0.4 sone for very quiet operation, as quiet as a whisper.
• 80 CFM provides efficient ventilation for rooms up to 75 sq. ft. removing moisture and reducing the risk of mold or mildew in most full baths
• Features 6" ducting for superior ventilation performance
• Fast, flexible installation for all types of projects with the included hanger bar system
• ENERGY STAR® Certified to reduce energy use by 50% and provide year-round savings
• UL Certified for use over bathtubs or showers when connected to a GFCI protected branch circuit
• Fits 2" x 8" ceiling construction
• Brighter white grille/cover blend in to match most common ceiling paint
• Corrosion resistant galvanized steel housing stands up to moisture
SPECIFICATIONS
• CFM: 80
• Color Finish: White
• Duct Size: 6"
• ENERGY STAR® certified: No
• Grille Length: 13
• Grille Width: 13.75
• Sound Level (Sones): 0.4
• UL Listed: Yes
• Grille Finish: Plastic
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: No
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Recommended Room Size (Sq Ft): 75
• Voltage: 120
• Can Be Used to Comply with Title 24: Yes
• Minimum Construction Space Required: 2" x 8"
• High Efficiency Luminaire: No
BLOWER
• Plug-in, permanently lubricated motor - engineered for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet, efficient performance
• Maintains a high percentage of rated CFM in less than ideal installations
• Low RPM for quiet operation
HOUSING
• Rugged, galvanized steel construction
• 6” round ducting for superior performance
• Polymeric duct connector with tapered sleeve and no metallic clatter
• 7-5/8” height allows for 2” x 8” (nominal) joist installations
• Sturdy, easy, four-point mounting directly to joist
• Includes unique, patented spacer for mounting to engineered “I” joists
• Includes hanger bars to position housing anywhere between 16” to 24”-on-center joists
• Two sets of mounting holes for hanger bars allow flush installation with bottom or top of drywall
• Can be mounted in ceilings up to 12/12 pitch
GRILLE
• Polymeric construction
• Innovative design - the result of extensive research with designers and consumers
