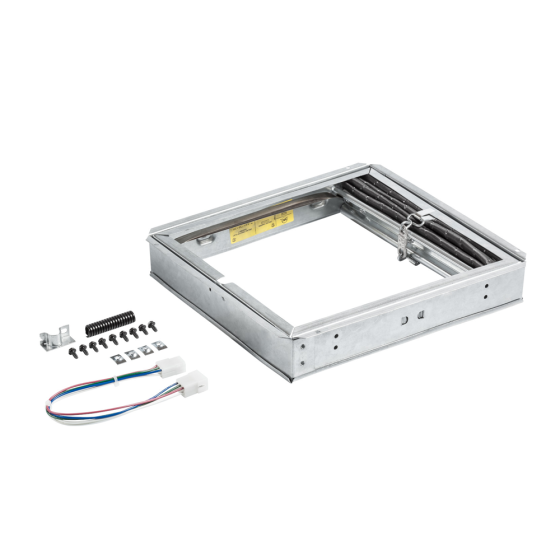

The Broan-NuTone® RDFQL Radiation Damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of a home.
FEATURES & BENEFITS
• For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions • Galvanized steel frame • High temperature, non-asbestos, reinforced fiber thermal fabric • Stainless steel closure springs • 165°F fusible link • Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material • For use with fans and ENERGY STAR qualified fan/lights • Includes light jumper cable • Meets or exceeds NFPA-90A • UL Classified (UL-555C) • Compatible with the following fan and fan/light models: QTXE080FLT, QTXE110FLT, QTXE110SFLT*, QTXE110S* (QTXE110S-A,B,C,D) * Sensor cable extension required on these models. (Purchase Model RDJUMPQ separately.) RDJUMPU2 is required for QTXE110S-E,F
