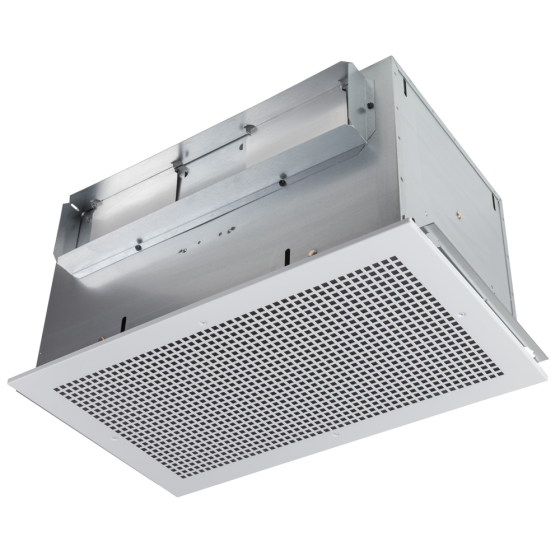

Broan-Nutone® LOSONE SELECT™ High-Capacity Ventilation Fan, 4-1/2" x 18-1/2" Rectangle Duct, 514CFM, 3.3 Sones, 120Vac

FEATURES

Broan® high-capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high-capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.

• 514 CFM, Powerful whole home or commercial ventilation

• 3.3 Audible Sones for privacy while using your bathroom

• Includes 8-way adjustable mounting brackets for easy ceiling-mount installation

• Duct horizontally, vertically or in-line with separate adapter

• Quiet automatic backdraft dampers

• Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)

• Not for use over tub or shower

• UL listed and cUL listed for your safety and protection

• AMCA licensed for air and sound performance

• Powerful enough for rooms up to () sq. ft.

• Heavy-gauge galvanized steel housing resists corrosion

• Two impact-resistant centrifugal blower wheels

SPECIFICATIONS

• CFM: 514

• Color Finish: White

• ENERGY STAR® certified: No

• Grille Length: 14

• Grille Width: 23.25

• Housing Dimensions: 12-1/4" x 21-1/2" x 11-3/4"

• Sound Level (Sones): 3.3

• UL Listed: Yes

• Grille Finish: White

• Humidity Sensing: No

• Motion Sensing: No

• Motor Engineered For Continuous Operation: Yes

• Night Light: No

• Radiation Damper Available: Yes

• Room Side Installation: No

• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No

• Rated Amps: 2.2

• Voltage: 120

• Can Be Used To Comply With Title 24: No

• Manufacturer Warranty: 1 Year

• High Efficiency Luminaire: No

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	34
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	24.000000
Exterior Dimensions (H) (inches)	14.000000
Shipping Weight (lbs)	34.000000

Specification
CFM	514
