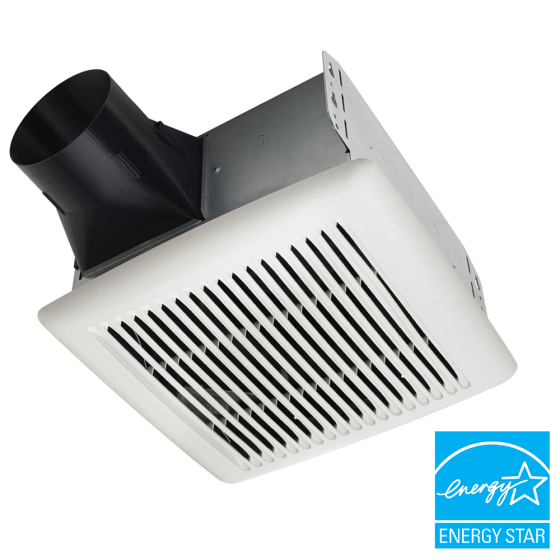

Broan® AE50 Flex Series 50 CFM Ceiling Exhaust Bath Fan, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 50 CFM and a very quiet 0.5 sones.
• 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
• 0.5 Sones for Ultra quiet performance, you might not notice it's on
• TrueSeal™ Damper technology reduces air leakage up to 50%
• EzDuct™ connector can be installed from the room side, with no attic access required
• ENERGY STAR® certified for energy efficiency
• UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
• Powerful enough for rooms up to 45 sq. ft.
• Brighter white grilles blend in to match most common ceiling paint
• Corrosion resistant galvanized steel housing stands up to moisture
• Permanently lubricated AC motor engineered for continuous operation
• Optional galvanized steel duct expander for use with 6" ducting and optional installation brackets are sold separately
• Comparable to NuTone Model AEN50
SPECIFICATIONS
BLOWER
• Plug-in, permanently lubricated motor - engineered for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet, efficient performance
• Low RPM for quiet operation
HOUSING
• Rugged, 26 gauge, galvanized steel construction
• Polymeric, 4” duct connector with tapered sleeve and no metallic clatter
• Optional galvanized steel duct expander for use with 6” ducting
• 5¾” height allows for 2” x 6” ceiling installations
• Sturdy, easy, four-point mounting directly to joist
• Can be mounted in ceilings up to 7/12 pitch
• Can be installed in a wall if mounted 8-ft. or more above the floor
GRILLE
• Polymeric construction
• Innovative design - the result of extensive research with designers and consumers
• CFM: 50
• Color Finish: White
• Duct Size: 4
• ENERGY STAR® certified: Yes
• Grille Length: 11.5
• Grille Width: 12
• Housing Dimensions: 9-1/4" x 10" x 5-3/4"
• Sound Level (Sones): 0.5
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: Yes
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
