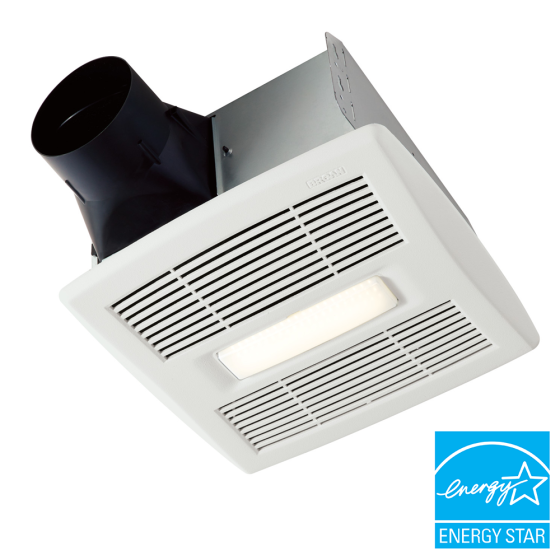

Broan® AE80SL Roomside Series White 80 CFM Ceiling Exhaust Bath Fan with a LED light, offers easy, room side installation, with No Attic Access Required. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. The humidity sensing feature offers the flexibility to set a user-adjustable set-point to have moisture eliminated from the room without the need to turn the fan on manually. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 80 CFM and a very quiet 0.7 Sones.
• 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
• 0.7 Sones for Ultra quiet performance, you might not notice it's on
• Bright 3500K energy efficient LED lighting to help illuminate your room
• Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition
• Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
• EzDuct™ connector can be installed from the room side, with no attic access required
• TrueSeal™ Damper technology reduces air leakage up to 50%
• Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
• ENERGY STAR® certified product
• UL Listed for use over tubs and showers with a GFCI circuit
• Powerful enough for rooms up to 75 sq. ft.
• Brighter white grilles blend in to match the most common ceiling paint
• Permanently lubricated AC motor engineered for continuous operation
SPECIFICATIONS
BLOWER
• Plug-in, permanently lubricated motor - engineered for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet, efficient performance
• Low RPM for quiet operation
HOUSING
• Rugged, 26 gauge, galvanized steel construction
• Polymeric, 4” duct connector with tapered sleeve and no metallic clatter
• 5-3/4” height allows for 2” x 6” ceiling installations
• Sturdy, easy, four-point mounting directly to joist
GRILLE
• Polymeric construction
• Innovative design - the result of extensive research with designers and consumers
• 11-Watt integrated LED lighting for energy efficiency
• 3500K color temperature provides soft white light - ideal for bathroom illumination
• LED lasts up to 25,000 hours for maintenance-free convenience
• CFM: 80
• Color Finish: White
• Duct Size: 4
• ENERGY STAR® certified: Yes
• Grille Length: 11.75
• Grille Width: 12.5
• Housing Dimensions: 9-1/4" x 10" x 5-3/4"
• Sound Level (Sones): 0.7
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: Yes
• Light Bulb Quantity: 1
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: Yes
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
