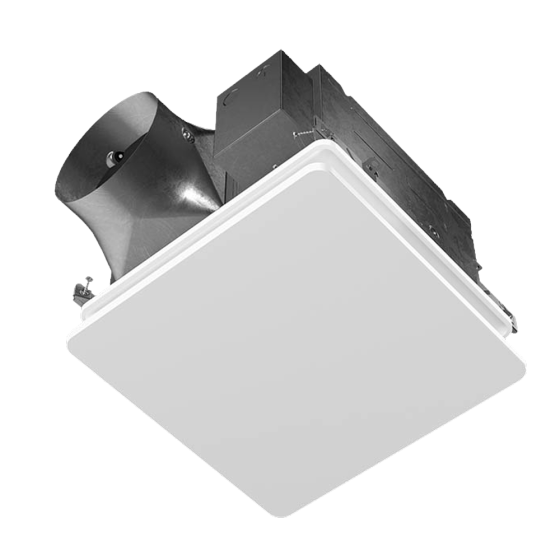

The EVOLVE Premium exhaust fan by Broan-NuTone is revolutionizing bathroom ventilation. This selectable CFM premium series features motor technology making it the only exhaust fan on the market that can guarantee airflow performance, no matter how complicated the ductwork, reducing call-backs. The premium series saves the installer time with the easy, slide-and-lock installation, reducing installation time by more than 30%. The premium series provides best-in-class features and code compliance without the complex assortment thanks to the universal housing with modularity. This series will be the only modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing.
• TRUECFM™: Guaranteed Performance no matter how complicated the ductwork. Selectable CFM with speeds of 50-80-110, maintains CFM through 0.4" static pressure.
• Near silent operation, < 0.3-0.5-0.6 Sones
• Save Up to 30% on Installation Time: Easy snap-in housing to mounting fame and slide-and-lock blower attachment.
• Seamless Design: Blends into the ceiling with CleanCover™ grille and floating mounted positioning.
• Slide-Clip™ Grille/Cover: Fast grille attachment for easy maintenance without the hassle of springs.
• Code Compliance: Continuous run capability preferred for meeting ENERGY STAR®, ASHRAE 62.2 and LEED whole home ventilation requirements.
• Modularity: modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing.
• Mounting Frame allows for positioning housing anywhere on center joists
• 5-Year Part Warranty with award winning customer service.
• Our EVOLVE Premium Exhaust Fans, featuring a DC/ECM motor can lower HERS scores up to 1 point relative to a model that uses a PSC motor, when using an exhaust only strategy.
SPECIFICATIONS
• CFM: 50-80-110
• Color Finish: White
• Duct Size: 6
• ENERGY STAR® certified: Yes
• Grille Length: 14
• Grille Width: 13.125
• Housing Dimensions: 11-3/8 x 10-1/2 x 7-1/8
• Sound Level (Sones): <0.3-0.5-0.6
• Sound Level (Sones): 0.3
• UL Listed: Yes
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Rated Amps: 0.45
• Voltage: 120
• Can Be Used To Comply With Title 24: Yes
• Globe Material: ABS
• Manufacturer Warranty: 5 Years
• High Efficiency Luminaire: No
Motor and Control Technology
• Resin-based DC internal rotor motor provides higher efficiency and low noise levels
• Selectable CFM setting of 50-80-110 CFM
• Continuous run capability ideal for meeting ASHRAE 62.2, LEED and ENERGY STAR® for whole home ventilation requirements. Can be used to comply with CA Title 24, as well as local/spot ventilation needs
• Precise and infinitely adjustable low CFM setting to prevent over-ventilating and maximize efficiency. Can be adjusted down to 30 CFM.
• TrueCFMTM maintains CFM at actual installation conditions, through 0.4" static pressure
• Blower assembly removable and has a centrifugal blower wheel
Housing
• No rust - 21 gauge galvanized steel housing
• Duct adaptors - 6" metal duct connector with 4" plastic reducer
• Duct connector and electrical wiring box mounting from inside of the housing provides room side capable install
• 7-1/8" height allows for 2" x 8" ceiling installations
• Two point vertical drive, two point angled drive
• Telescoping (14" to 24") mounting frame for easy room side (no attic access required) installation
• Easy snap-in feature to attach housing to mounting frame
• Easy slide-and-lock blower attachment for tight seal for CFM performance and quiet sones
Grille
• ABS polymeric construction
• Clean cover design with floating mounted positioning
• SlideClip™ Grille provides easy and intuitive grill attachment with no springs
