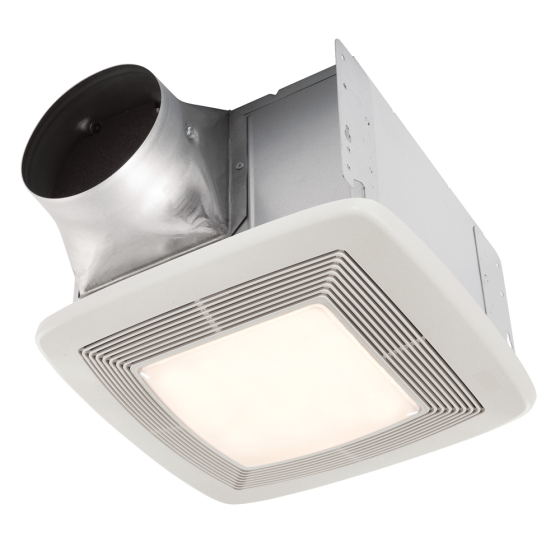

The Broan® QT Series quiet 130 CFM ceiling exhaust bath fan with a LED light features a quiet motor design intended to operate at just 1.5 sones, as well as galvanized steel housing material. This fan is UL Listed and HVI certified and is compliant with ENERGY STAR® standards to help maximize energy efficiency. Use it in bathrooms up to 125 sq. ft. in size.
• 130 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms.
• 1.5 Sones for Quiet performance, enough sound to know your fan is on.
• Motor engineered for continuous operation
• Two 10W GU24 LED bulbs and one 4W C& night light bulb included
• Fits in 2" x 8" ceiling construction
• Includes unique spacer for easy "I" joist mounting
• 6" duct connector with 6" to 4" reducer included
• ENERGY STAR® Certified
• U.L. Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only).
• Powerful enough for rooms up to 120 sq. ft.
• Corrosion resistant galvanized steel housing stands up to moisture
SPECIFICATIONS
• CFM: 130
• Color Finish: White
• Duct Size: 6
• ENERGY STAR® certified: Yes
• Grille Length: 13
• Grille Width: 13.75
• Housing Dimensions: 10-1/2" X 11-3/8" X 7-5/8"
• Sound Level (Sones): 1.5
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Light Bulb Quantity: 2
• Motion Sensing: No
• Motor Engineered For Continuous Operation): Yes
• Night Light: Yes
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Heater Wattage: 0
• Recommended Room Size (Sq Ft): 120
• Rated Amps: 1
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Minimum Construction Space Required: 2" x 8"
• Manufacturer Warranty: 3 Years
• High Efficiency Luminaire: No
BLOWER
• Plug-in, permanently lubricated motor - engineered for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet, efficient performance
• Low RPM for quiet operation
• Airflow-smoothing baffles reduce turbulence
HOUSING
• Rugged, galvanized steel construction
• 6” round duct connector with tapered sleeve and no metallic clatter
• 6” round to 4” round duct reducer included – allows connection of 4” round ductwork
• 7-5/8” height allows for 2” x 8” ceiling installations
• Sturdy, easy, four-point mounting directly to joist
• Includes unique spacer (patented) for mounting to engineered “I” joists
• Can be mounted in ceilings up to 12/12 pitch
• 10W (max) LED, suitable for enclosures, type GU24 based, 105 mm maximum overall length
GRILLE
• Polymeric construction
• Innovative design - the result of extensive research with designers and consumers
• Energy efficient lighting - (2) bulbs (included), and 4W (max) type C7 night light bulb (included)
• Durable steel reflector with white enamel finish
