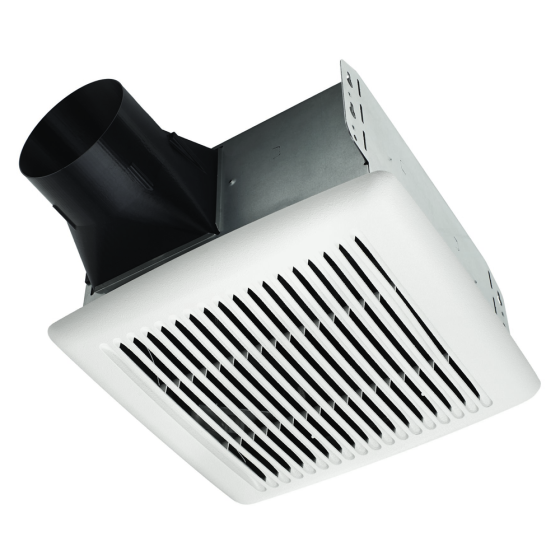

The Broan® AE80S Flex™ Series Humidity Sensing Ceiling Ventilation Fan, offers easy, room side installation, with No Attic Access Required. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. The humidity sensing feature offers the flexibility to set a user-adjustable set-point to have moisture eliminated from the room without the need to turn the fan on manually. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 80 CFM and a very quiet 0.7 Sones.
FEATURES & BENEFITS
• 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths • 0.7 Sones for Ultra quiet performance, you might not notice it's on • Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation • EzDuct™ connector can be installed from the room side, with no attic access required • TrueSeal™ Damper technology reduces air leakage up to 50% • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications • UL Listed for use over tubs and showers with a GFCI circuit • Powerful enough for rooms up to 75 sq. ft. • Brighter white grilles blend in to match most common ceiling paint • Corrosion resistant galvanized steel housing stands up to moisture • Permanently lubricated AC motor engineered for continuous operation • CFM (@ 0.1 SP): 80 • Duct Size: 4" Round • ENERGY STAR® certified: Yes • Grille Length: 11.5 • Grille Width: 12 • Housing Dimensions: 9-1/4" x 10" x 5-3/4" • Sound Level (Sones): 0.7 • UL Listed: Yes • Grille Finish: White • Humidity Sensing: Yes • Motion Sensing: No • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: Yes • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes • Recommended Room Size (Sq Ft): 75 • Rated Amps: 0.3 • Voltage: 120 • Can Be Used to Comply With Title 24: No • Minimum Construction Space Required: 2" x 6" • Manufacturer Warranty: 3 Years • High Efficiency Luminaire: No
BLOWER: • Plug-in, permanently lubricated motor - engineered for continuous operation • Dynamically balanced centrifugal blower wheel for quiet, efficient performance • Low RPM for quiet operation
HOUSING: • Rugged, 26 gauge, galvanized steel construction • Polymeric, 4” duct connector with tapered sleeve and no metallic clatter • 5-3/4” height allows for 2” x 6” ceiling installations • Sturdy, easy, four-point mounting directly to joist
GRILLE: • Polymeric construction • Innovative design - the result of extensive research with designers and consumers
CONTROLS (Purchase separately): • Refer to Broan’s catalog for a complete line of accessories to effectively adapt these fans to your construction requirements.
AUTOMATIC CONTROL: • Humidity control automatically turns fan ON when either of these conditions is detected: - a rapid to moderate (user adjustable) increase of humidity - humidity above user-adjustable set-point (50%-80% RH) • Two wire manual operation for odor control - Turns fan ON when power line through wall switch is cycled ON, OFF and back ON. • Remains ON for a user-adjustable 5 to 60 minutes after humidity has stabilized and is below set-point or after manually initiated through power line cycling • Saves energy because unit runs only for the time required. A unit controlled with a wall timer may keep fan ON longer than required or turn it OFF before room is sufficiently ventilated.
