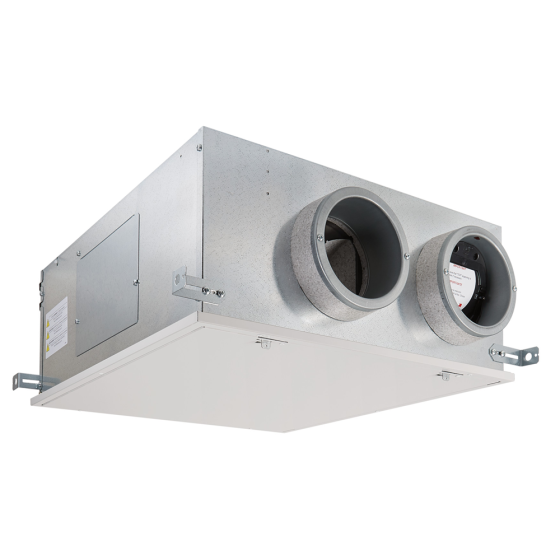

The Broan ERVS100S Energy Recovery Ventilator is an effective, balanced ventilation solution featuring integrated humidity sensing to limit ventilation during periods of excessive outdoor humidity to contribute to a more comfortable indoor environment. The ERVS100S provides a supply of fresh, filtered air to the home while exhausting stale air and pollutants.
FEATURES & BENEFITS
• Type: Cross flow • Voltage: 120V • Amps: 0.9 • Watts: 105 • Anti-freeze Setting (Approved for Unheated Space): No • Automatic Shutoff: No • Built-In Timer: No • cETL Listed: No • CSA Listed: Yes • cUL Listed: No • ETL Listed: No • Humidity Sensing: Yes • HVI Certified: Yes • UL Listed: Yes • Airflow (CFM): 100 • Apparent sensible efficiency at 32°F: 68 • Filtration Level: 20 PPI • Ports Location: Side • Ports Size: 6" Round • Sensible recovery efficiency at 32°F: 64 • Sound Level (Sones): 0 • Core Warranty: 5 Years • Parts Warranty: 5 Years • Product Length: 20 • Product Width: 25.6875 • Product Height: 9.125 • ENERGY STAR® certified: No • High Efficiency Luminaire: No • Integrated humidity sensor limiting the ventilation during periods of excessive outdoor humidity, contributing to a comfortable indoor environment. • 65 to 105 CFM at 0.4 in. w.g; • Energy recovery core recovering up to 51% of the excess moisture and up to 71% of the apparent heat or coolness. • Exclusive mounting bracket system providing a faster and easier installation in the ceiling, an attic, or a small closet. • Integrates with existing forced-air furnace ducting for easy installation but runs independently to limit energy consumption related to ventilation. • Built-in damper on fresh air supply port to prevent outdoor air infiltration when the unit is turned off. • Integrated control to easily set the unit at installation.
