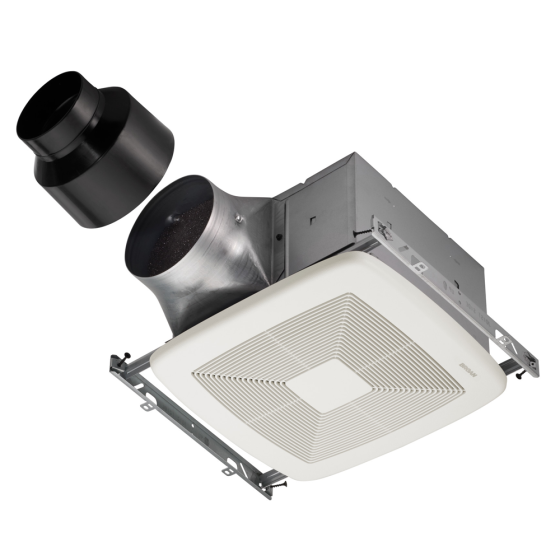

The Broan® ZB80 ULTRA GREEN™ Multi-Speed Ceiling Bath Fan gives a premium performance for today's demanding home ventilation requirements. 80 CFM quickly reduce humidity and manage moisture in bathrooms up to 75 sq. ft. ULTRASilent™ technology operates at the lowest sound rating achievable, less than 0.3 sones. The ULTRASmart DC motor and control technology provides energy efficiency almost 10 times greater than ENERGY STAR® requirements. With ULTRAQuick™ installation technology the ZB80 provides the fastest, easiest, and most universal installation in remodel, retrofit, and new construction. The Broan® ZB80 has been specifically designed to meet both spot and continuous ventilation needs for various building codes and green building standards.
FEATURES & BENEFITS
• 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths • 0.3 Sones for Ultra quiet performance, you might not notice it's on • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws • Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fasters, easiest, most universal installation • Mounting Frame fits any type of joist, I-Joist or truss construction for a in.no guesswork in. installation to make the work fast and easy • ENERGY STAR® certified ventilation fan • UL listed and HVI-2100 Certified for safety • UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only) • Title 24 compliant • Powerful enough for rooms up to 75 sq. ft. • Brighter white grilles blend in to match most common ceiling paint • Corrosion resistant galvanized steel housing stands up to moisture • Brushless DC electronically controlled digital motor is 3Xmore efficient than standard AC powered ventilation • Includes 6 in. to 4 in. duct reducer for increased installation options • CFM: 80 • Duct Size: 6 in. Round • ENERGY STAR® certified: Yes • Grille Length: 13 • Grille Width: 13.75 • Housing Dimensions: 10-1/2 in. x 11-3/8 in. x 7-5/8 in. • Sound Level (Sones): 0.3 • UL Listed: Yes • Grille Finish: White • Humidity Sensing: No • Motion Sensing: No • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: Yes • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes • Recommended Room Size (Sq Ft): 75 • Rated Amps: 0.3 • Voltage: 120 • Can Be Used to Comply with Title 24: Yes • Minimum Construction Space Required: 2 in. x 8 in. • Manufacturer Warranty: 3 Years • High Efficiency Luminaire: No
• ULTRASMART™ DC Motor and Control Technology • DC motor for efficiency well beyond ENERGY STAR® requirements. • Multi-speed capability ideal for meeting ASHRAE 62.2, LEED and ENERGY STAR® for Homes requirements. Can be used to comply with CA Title 24, as well as local/spot ventilation needs. • Powerful operation maintained over a wide range of real-world installations (CFM ratings maintained through at least 0.25” static pressure). • Infinitely adjustable low cfm setting allows precise adjustment to prevent over-ventilating and maximize efficiency. • Adjustable time delay sets how long fan will run on high speed before returning to a continuous lower speed. • Rated for Continuous Operation.
• ULTRASILENT™ Sound Technology • HVI certified, best-achievable 0.3 Sone level provides nearly silent operation for a relaxing environment. • State-of-the-art blower and duct outlet design smooths airflow. • High tech DC motor designed for nearly silent operation.
• ULTRAQUICK™ Installation Technology •Unique telescoping mounting frame fits through retrofit drywall opening to allow easy installation from the room side. No attic access needed! • Captive screws allow for easy new construction installation. • Mounting frame positioning tabs provide easy vertical positioning for new construction. • Easy to insert and remove snap-in housing. No screws required! • Easy to insert and remove snap-in blower. • Inside or outside duct connector and knockout plate mounting provides flexibility for new construction or retrofit.
• cULus Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only). • Use only ON/OFF switch, mechanical timer or relay-switched control. • 3-year warranty.
