Braeburn® Non-Programmable Digital Thermostat 2H/1C (2H/1C HP), 24Vac/3Vdc (2 AA)

FEATURES

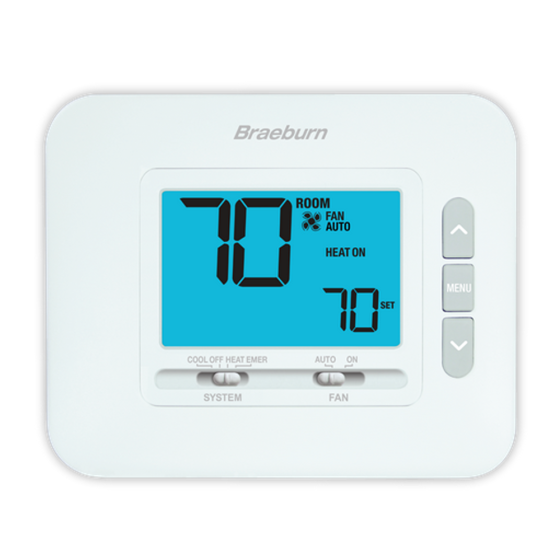

The non-programmable thermostat shall be a Braeburn ® model number 1230, 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer settings and setpoints. The thermostat shall be compatible with low voltage single or multi-stage gas, oil, or electric heating or cooling systems, and single stage heat pumps with or without auxiliary heat. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat shall have a bright blue backlight display and separate sub-base. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, heat pump check terminal, permanent non-volatile memory to retain user settings, filter check monitor and installer lock mode.

• Staging: 2 Heat / 1 Cool

• Display Size: 4.4 Sq. In.

• Programming: Non-Programmable

• Power: Battery, Hardwire

• Terminations: Rc, Rh, E/W1, W2, Y1, G, O, B, L, C

• Commercial Mode: No

• Backlight: Bright Blue

• Keypad Lockout: No

• Auto Changeover: No

• Adj. Temp. Limits: Yes - With Installer Lock

• Remote Sensors: No

• Programmable Fan: No

• Circulating Fan: No

• Humidity Control: No

• Fresh Air Terminal: No

• Dry Contact Input: No

• Warranty: 5-year

SPECIFICATIONS

• Dimensions: 4.25” x 5.12” x 1”

• Electric Rating: 24 Volt AC (18-30 Volt AC)

• 1 amp maximum load per terminal

• 4 amp total maximum load (all terminals)

• AC Power: 18-30 Volt AC

• DC Power: 3.0 Volts DC

• (2 “AA” Alkaline batteries included)

• Compatibility: Single stage gas, oil, electric or hydronic systems

• Single stage heat pumps with or without

• auxiliary heat

• 250mv – 750mv millivolt heating systems

• Control Range: 45° to 90° F (7° to 32° C)

• Display Range: 35° to 99° F (1.5° to 37° C)

• Accuracy: +/- 1° F (+/- .5° C)

• Temperature

• Differential: 0 .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)

• Storage Temperature: 14° to 140° F (-10° to 60° C)

• Operating Humidity: 5% to 95% Relative Humidity

• Terminations: Rc, Rh, O, B, Y1, W1/E, W2, G, C, L
