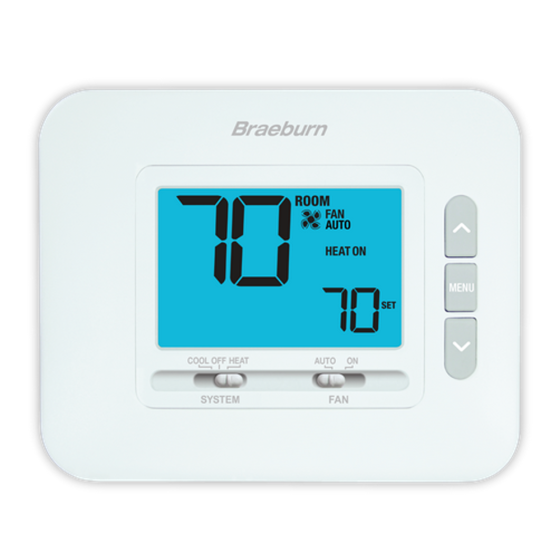

Braeburn® Non-Programmable Digital Thermostat 1H/1C (1H/1C HP), 24Vac/3Vdc (2 AA)

FEATURES

The non-programmable thermostat shall be a Braeburn® model number 1030, 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer settings and setpoints. The thermostat shall be compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single stage heat pumps. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat shall have a bright blue backlight display and separate sub-base. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter check monitor and installer lock mode.

• Staging: 1 Heat / 1 Cool

• Display Size: 4.4 Sq. In.

• Programming: Non-Programmable

• Power: Battery, Hardwire

• Terminations: Rc, Rh, W1, Y1, G, O, B, C

• Commercial Mode: No

• Backlight: Bright Blue

• Keypad Lockout: No

• Auto Changeover: No

• Adj. Temp. Limits: Yes - With Installer Lock

• Remote Sensors: No

• Programmable Fan: No

• Circulating Fan: No

• Humidity Control: No

• Fresh Air Terminal: No

• Dry Contact Input: No

• Warranty: 5-year

SPECIFICATIONS

• Dimensions: 4.25” x 5.12” x 1”

• Electric Rating: 24 Volt AC (18-30 Volt AC)

• 1 amp maximum load per terminal

• 3 amp total maximum load (all terminals)

• AC Power: 18-30 Volt AC

• DC Power: 3.0 Volts DC

• (2 “AA” Alkaline batteries included)

• Compatibility: Single stage gas, oil, electric or hydronic systems

• Single stage heat pumps

• 250mv – 750mv millivolt heating systems

• Control Range: 45° to 90° F (7° to 32° C)

• Display Range: 35° to 99° F (1.5° to 37° C)

• Accuracy: +/- 1° F (+/- .5° C)

• Temperature

• Differential: 0 .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)

• Storage Temperature: 14° to 140° F (-10° to 60° C)

• Operating Humidity: 5% to 95% Relative Humidity

• Terminations: Rc, Rh, O, B, Y1, W1, G, C
