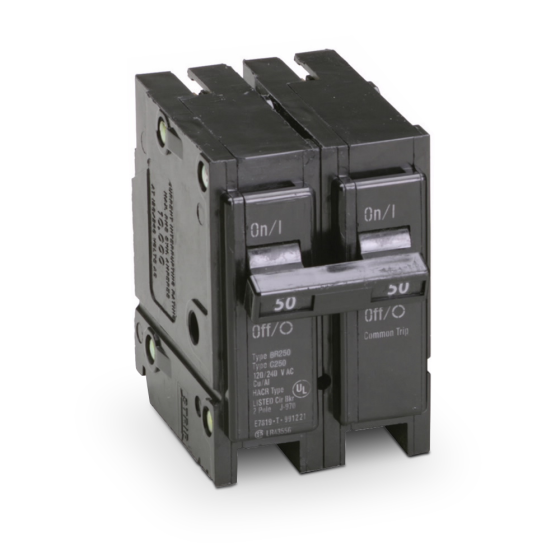

Eaton Type BR Circuit Breaker 50a, 2-Pole, 120/240Vac

Item
BR250
  • California Prop 65

FEATURES & BENEFITS

• Federal Specifications Classification W-C375
• UL 489
• Interrupt rating: 10 kAIC
• Type: Type BR 1-Inch plug-on circuit breaker
• Wire size: #14-4 AWG Cu/Al
• Circuit breaker type: BR
• Used with: Type BR Load centers
• Main circuit breaker: BR
• Mounting Method: Plug-on
• Voltage rating: 120/240 V
• Amperage Rating: 50 A
• Trip Type: Common breaker trip
• Number of poles: Two-pole

Electrical
Amps 50
Safety Standards
California Prop 65 Yes
Specification
Amp Rating 50
Weights and Dimensions
Operating Weight (lbs) 1.5
Exterior Dimensions (D) (inches) 2.000000
Exterior Dimensions (W) (inches) 3.250000
Exterior Dimensions (H) (inches) 2.500000
Shipping Weight (lbs) 1.500000
