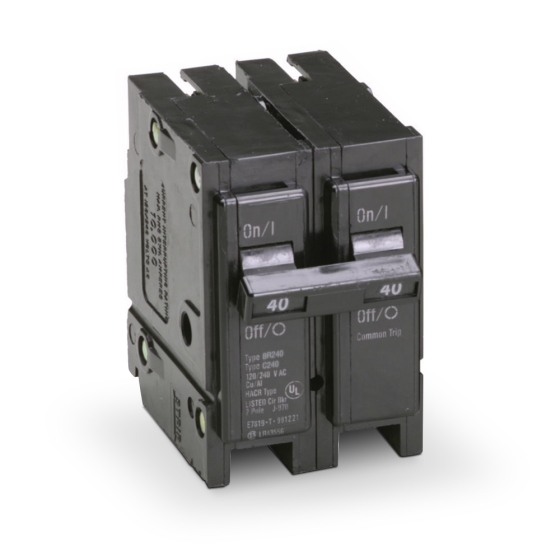

Eaton Type BR Circuit Breaker 40a, 2-Pole, 120/240Vac

Item

BR240

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Federal Specifications Classification W-C375
• UL 489
• Interrupt rating: 10 kAIC
• Type: Type BR 1-Inch plug-on circuit breaker
• Wire size: #14-4 AWG Cu/Al
• Circuit breaker type: BR
• Used with: Type BR Load centers
• Main circuit breaker: BR
• Mounting Method: Plug-on
• Voltage rating: 120/240 V
• Amperage Rating: 40 A
• Trip Type: Common breaker trip
• Number of poles: Two-pole

Specifications

Electrical
Amps	40

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	40

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	2.000000
Exterior Dimensions (W) (inches)	3.250000
Exterior Dimensions (H) (inches)	2.500000
Shipping Weight (lbs)	1.000000

Resources

BR240_TDS.pdf
