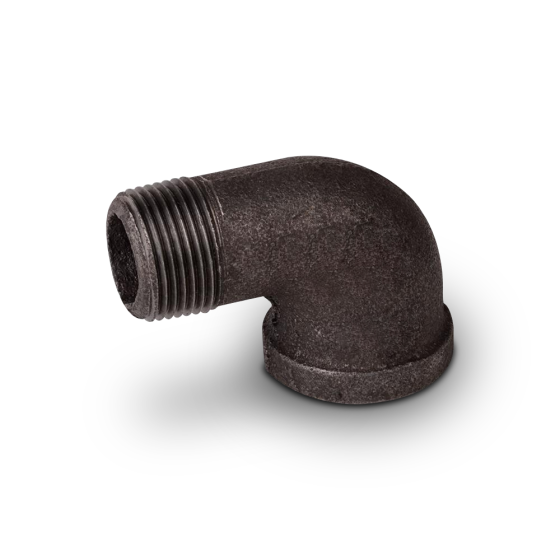

Black Iron Pipe 90° Street Elbow 3/4" FIP x 3/4" MIP (cl150 - Sch40)
Item
BPF-14
The 90 Degree Street Ell fitting is made of ASTM A 197 Cupola Malleable Iron, 150 LB. The dimensions for this fitting are ANSI B 16.3. The threads are ANSI V 2.1 or BS 21 and the tensile strength is 28.4 kg/mm.min for this fitting.
| Specification | |
|---|---|
| Fitting Size | 3/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | .2 | Exterior Dimensions (D) (inches) | 2.500000 | Exterior Dimensions (W) (inches) | 2.500000 | Exterior Dimensions (H) (inches) | 2.500000 | Shipping Weight (lbs) | 0.200000 |
