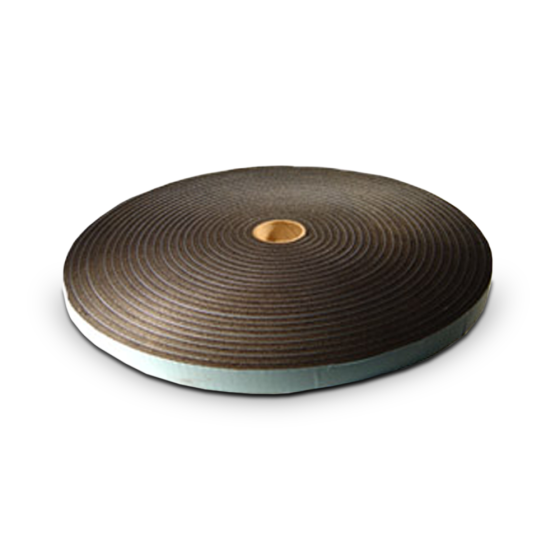

Neoprene Gasket 3/8" x 3/4", 25'

APPLICATIONS

Wherever flanges are used in connecting parts of a duct system, the potential for air leakage exists. Besides contributing to energy waste, leaks can also create noise. Sealing of ductwork can be accomplished with the use of neoprene gasket which adheres to flanged surfaces. When this material is attached to a flange which is then assembled to a second flange, the material is compressed and fills gaps and irregularities creating a seal.

FEATURES & BENEFITS

• Excellent resistance to oil and fuel
• Black, continuous, closed cell, medium density rubber product
• PVC/NBR/CR closed cell rubber material manufactured in continuous rolls
• UL94 5VA, 5VB, V-0, V-1, HF-1 and HBF listed for flame
• ASTM D 1056-07 2A2/2C2/2B2 grade product
• ASTM D 6575-07 Type II, Grades A & B, Condition Soft-Medium material
• Color: Black
• Density: 88-120 kg/m3
• Hardness: 50 + 10
• Compression-Deflection @ 25%: 5 - 9 psi
• Compression Set @ 50%: ≤ 25%
• Water Absorption: < 10%
• Fluid Immersion: < 100%
• Tear Strength: 12 lbs./in.
• Tensile Strength: 75 psi min.
• Elongation: 100% min.
• Flammability: FM VSS 302 UL 94 V-0, 5 VA, HF-1, HBF
• Temperature Use: -20°F - 160°F Max (200°F intermittent)
