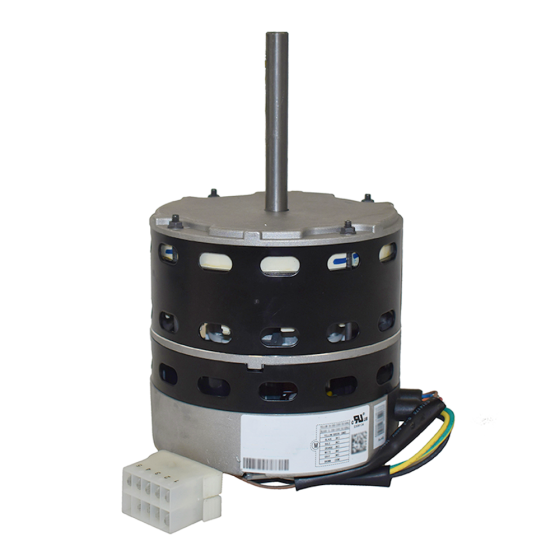

Direct-Drive Blower Motor (ECM)
Item
HD42AQ253
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 1/3 | Motor Type | ECM | Rotation | CCW LE | RPM | 1050 |
| Electrical | |
|---|---|
| Amps | 2.6 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 8.9 | Exterior Dimensions (D) (inches) | 5.200000 | Exterior Dimensions (W) (inches) | 5.200000 | Exterior Dimensions (H) (inches) | 9.100000 | Shipping Weight (lbs) | 8.900000 |
