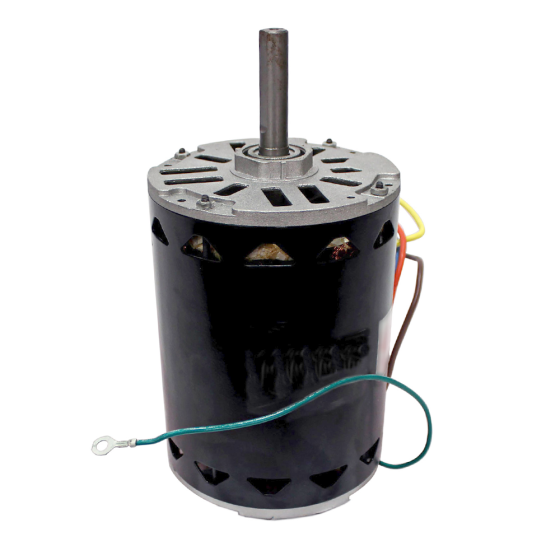

Direct Drive Blower Motor 1HP, 1000RPM, 208/230Vac, 5.6A, 25µF/370Vac, 3 Speed, 60 °C, (PSC)
Item
HC52AL231
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1
• RPM: 1000
• Number of Speeds: 3
• Rotation: Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 5.6
• Capacitor: 25µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.62 x 2.5
Specification | |
---|---|
Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CW LE | RPM | 1000 | Shaft Diameter | 0.62 | Shaft Length | 2.5 |
Electrical | |
---|---|
Amps | 5.6 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 28 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 13.000000 | Shipping Weight (lbs) | 28.000000 |
