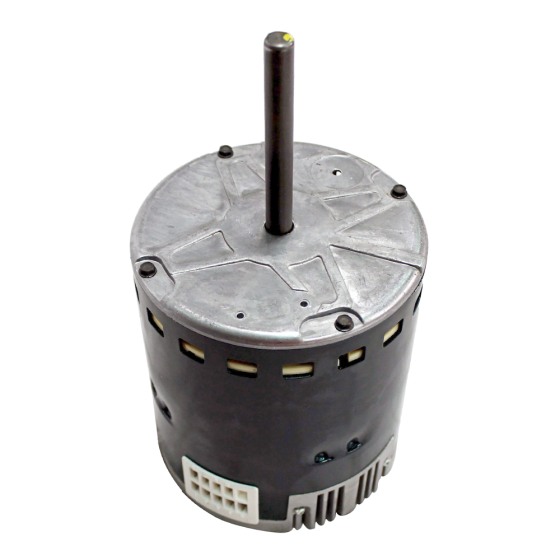

Direct Drive Blower Motor 1HP, 1050RPM, 208/230Vac, 7.6A, (ECM)
Item
HD52AR250
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1
• RPM: 1050
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 7.6
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
Specification | |
---|---|
Motor HP | 1 | Motor Type | ECM | Rotation | CCW LE | RPM | 1050 |
Electrical | |
---|---|
Amps | 7.6 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 17.55 | Exterior Dimensions (D) (inches) | 6.850000 | Exterior Dimensions (W) (inches) | 16.300000 | Exterior Dimensions (H) (inches) | 6.140000 | Shipping Weight (lbs) | 17.550000 |
