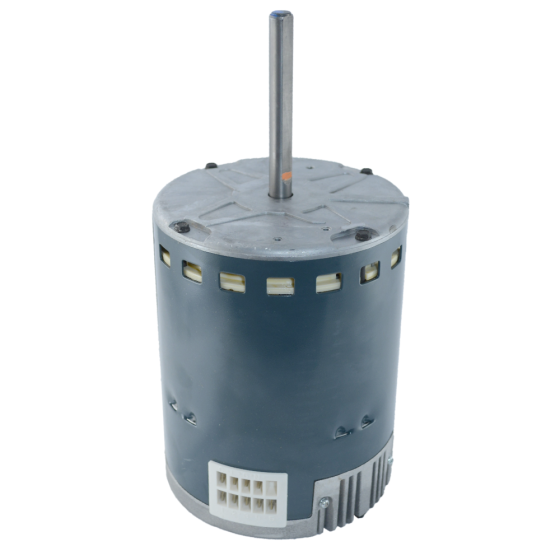

Direct Drive Blower Motor 1HP, 1050RPM, 115Vac, 10.9A, (ECM)

Item
HD52LR120
  • California Prop 65

FACTORY AUTHORIZED PART BENEFITS

• Meets exact part design life testing for maximum reliability and durability.
• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.

FEATURES & BENEFITS

• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1
• RPM: 1050
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 115Vac
• Amperage: 10.9
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B

Specification
Motor HP 1
Motor Type ECM
Rotation CCW LE
RPM 1050
Electrical
Amps 10.9
Hertz 60
Voltage 115
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 26
Exterior Dimensions (D) (inches) 7.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 17.000000
Shipping Weight (lbs) 26.000000
