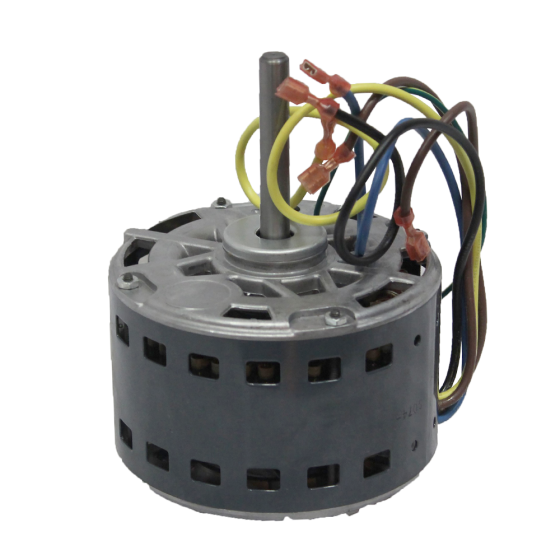

Direct Drive Blower Motor 1/10HP, 900RPM, 208/230Vac, 0.9A, 5µF/370Vac, 2 Speed, (PSC)
Item
HC33AE208
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 1/10 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 900 |
| Electrical | |
|---|---|
| Amps | 0.9 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 9 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 9.000000 |
