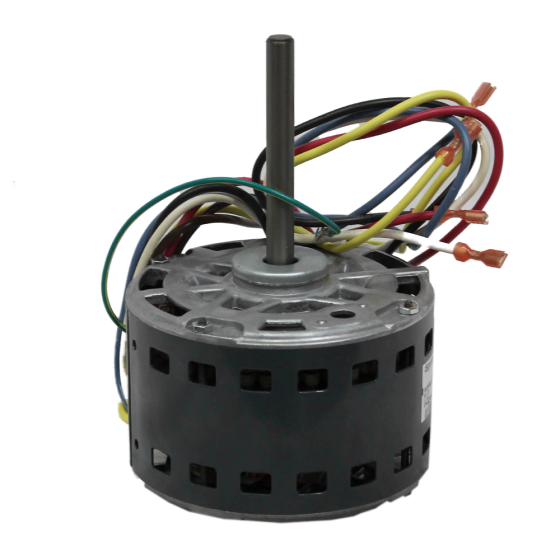

Direct Drive Blower Motor 1/5HP, 1075RPM, 115Vac, 2.8A, 7.5µF/370Vac, 4 Speed, (PSC)
Item
HC37AE113
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 1/5 | Motor Type | PSC | Number of Speeds | 4 | Rotation | CCW LE | RPM | 1075 |
| Electrical | |
|---|---|
| Amps | 2.8 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 8.75 | Exterior Dimensions (D) (inches) | 6.900000 | Exterior Dimensions (W) (inches) | 14.700000 | Exterior Dimensions (H) (inches) | 7.200000 | Shipping Weight (lbs) | 8.750000 |
