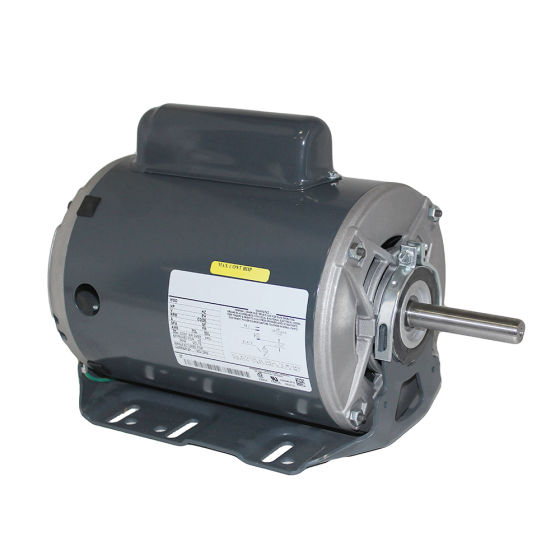

Belt Drive Blower Motor 1HP, 1725RPM, 208/230Vac, 5.5A, 40 °C
Item
HC54FR230
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor Frame | 56Y | Motor HP | 1 | RPM | 1725 |
| Electrical | |
|---|---|
| Amps | 5.5 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 30 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 15.000000 | Shipping Weight (lbs) | 30.000000 |
