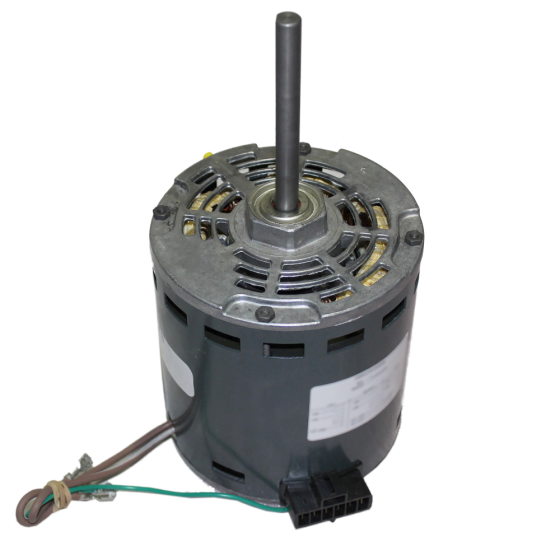

Direct Drive Blower Motor 3/4HP, 1050RPM, 115/208/230Vac, 10.0A, 15µF/370Vac, 1 Speed, (PSC)
Item
15010304
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor HP | 3/4 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW LE | RPM | 1050 |
| Electrical | |
|---|---|
| Amps | 10 | Hertz | 60 | Voltage | 115/208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20.15 | Exterior Dimensions (D) (inches) | 7.300000 | Exterior Dimensions (W) (inches) | 6.800000 | Exterior Dimensions (H) (inches) | 13.600000 | Shipping Weight (lbs) | 20.150000 |
