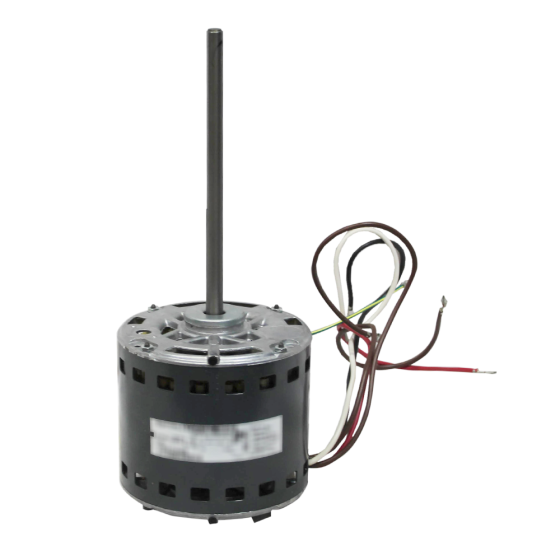

Direct Drive Blower Motor 1/3HP, 825RPM, 460Vac, 0.8A, 7.5µF/370Vac, 2 Speed, (PSC)
Item
HC41VX460
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 825
• Number of Speeds: 2
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 460Vac
• Amperage: 0.8
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 8.60
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CCW LE | RPM | 825 | Shaft Diameter | 0.50 | Shaft Length | 8.60 |
Electrical | |
---|---|
Amps | 0.8 | Hertz | 60 | Voltage | 460 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 24 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 22.000000 | Shipping Weight (lbs) | 24.000000 |
