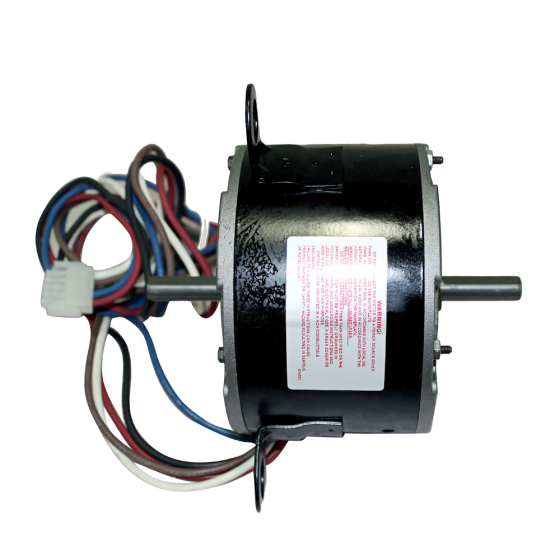

Double Shaft Direct Drive Blower Motor 1/6HP, 1100RPM, 265Vac, 0.8A, 5µF/370Vac, 3 Speed, 40 °C, (PSC)
Item
HC37CE263
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/6 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CCW LE | RPM | 1100 | Shaft Diameter | 0.50 | Shaft Length | 1.8 x 1.8 |
Electrical | |
---|---|
Amps | 0.8 | Hertz | 60 | Voltage | 265 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 9.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 10.000000 |
