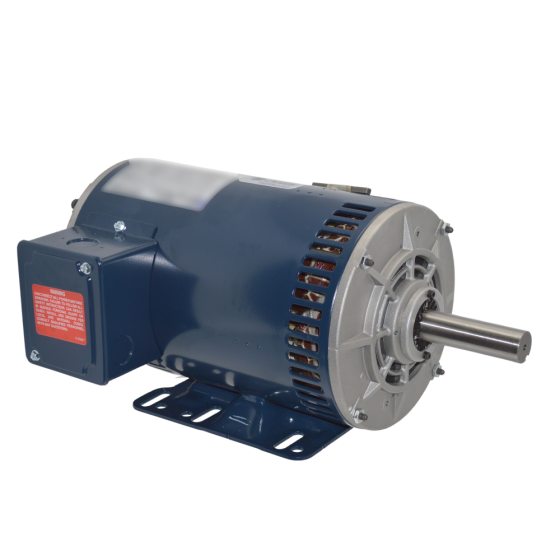

Belt Drive Blower Motor 1745RPM, 208/230/460Vac, 14.0/7.0A, 40 °C
Item
HD60FK658
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• RPM: 1745
• Rotation: Reversible
• Voltage: 208/230/460Vac
• Amperage: 14.0/7.0
• 3 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
Specification | |
---|---|
RPM | 1745 |
Electrical | |
---|---|
Amps | 14 | Hertz | 60 | Voltage | 208/230/460 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 49 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 12.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 49.000000 |
