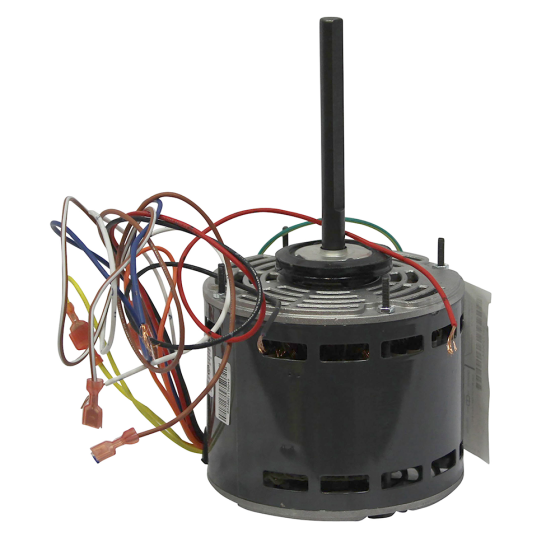

Direct Drive Blower Motor 1/3HP, 1075RPM, 115Vac, 5.0A, 7.5µF/370Vac, 3 Speed, 40 °C, (PSC)

Item

1864

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1075
• Number of Speeds: 3
• Rotation: Counter-Clockwise
• Voltage: 115Vac
• Amperage: 5.0
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48Y
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C

Specifications

Specification
Bearing Type	Ball
Motor Frame	48Y
Motor HP	1/3
Motor Type	PSC
Number of Speeds	3
Rotation	CCW
RPM	1075

Electrical
Amps	5
Hertz	60
Voltage	115

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	12
Exterior Dimensions (D) (inches)	8.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	16.000000
Shipping Weight (lbs)	12.000000
