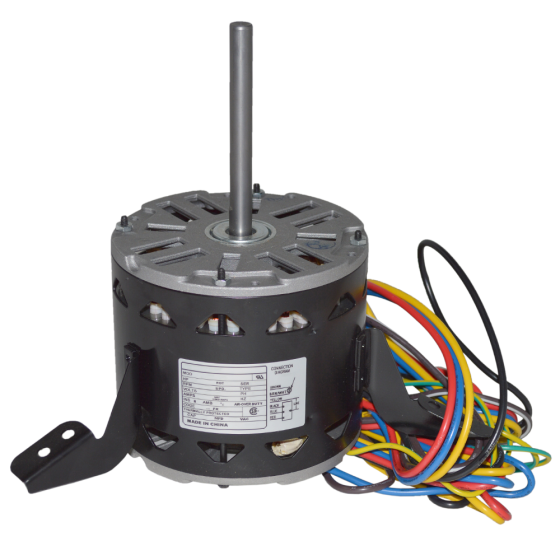

Direct Drive Blower Motor 1/2HP, 1075RPM, 208/230Vac, 4.4A, 7.5µF/370Vac, 3 Speed, 40 °C, (PSC)
Item
8733819159
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Motor Frame | 48Y | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CCW LE | RPM | 1075 |
Electrical | |
---|---|
Amps | 4.4 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 17.25 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 17.250000 |
