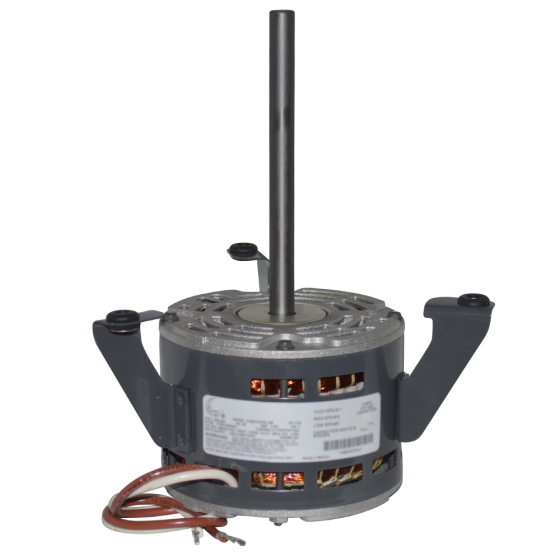

Direct Drive Blower Motor 1/20HP, 1725RPM, 208/230Vac, 0.52A, 3µF/370Vac, 3 Speed, 40 °C, (PSC)
Item
14B0027N01
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/20
• RPM: 1725
• Number of Speeds: 3
• Voltage: 208/230Vac
• Amperage: 0.52
• Capacitor: 3µF/370Vac
• 1 Phase
• Hz: 60
• NEMA Frame Size: 42Y
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
| Specification | |
|---|---|
| Motor Frame | 42Y | Motor HP | 1/20 | Motor Type | PSC | Number of Speeds | 3 | RPM | 1725 |
| Electrical | |
|---|---|
| Amps | 0.52 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 17.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 20.000000 |
