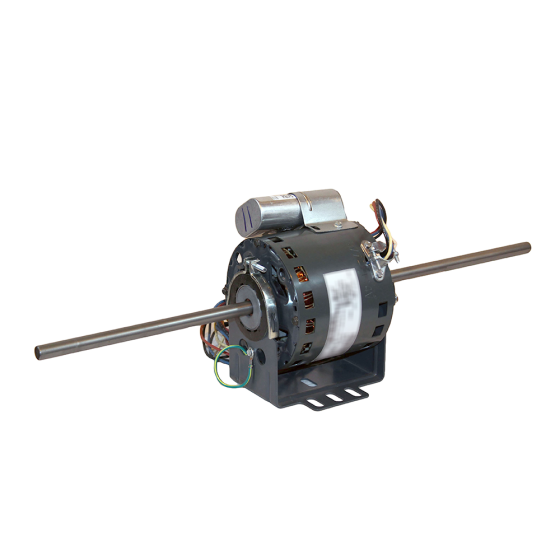

Double Shaft Direct Drive Blower Motor 1/12HP, 1375RPM, 115Vac, 1.4A, 6µF/370Vac, 3 Speed, (PSC)
Item
42AA680015
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Bearing Type | Sleeve | Motor Frame | 29 | Motor HP | 1/12 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CW | RPM | 1375 | Shaft Diameter | 0.50 | Shaft Length | 8.25 x 8.0 |
| Electrical | |
|---|---|
| Amps | 1.4 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 11 | Exterior Dimensions (D) (inches) | 23.000000 | Exterior Dimensions (W) (inches) | 9.000000 | Exterior Dimensions (H) (inches) | 9.000000 | Shipping Weight (lbs) | 11.000000 |
