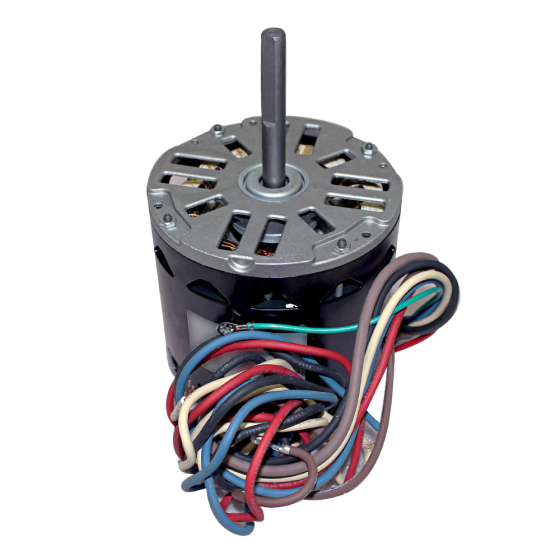

Direct Drive Blower Motor 1/2HP, 1075RPM, 115Vac, 9.6A, 15µF/370Vac, 3 Speed, 40 °C, (PSC)
Item
HC43SA115
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 1075
• Number of Speeds: 3
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 115Vac
• Amperage: 9.6
• Capacitor: 15µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48Y
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 3.40
SUPERSEDES FROM
• 58EDB0604286
• 58EDB0604311
• 58EDB4604311
• P251-2207
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 48Y | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CCW LE | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 3.40 |
Electrical | |
---|---|
Amps | 9.6 | Hertz | 60 | Voltage | 115 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 8 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 17.900000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 8.000000 |
