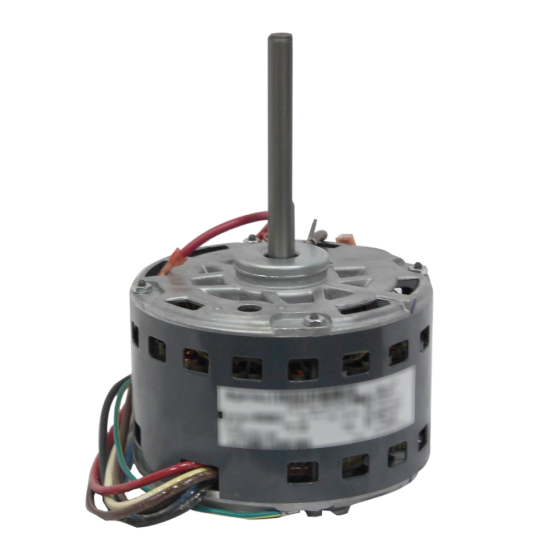

Direct Drive Blower Motor 1/5HP, 1075RPM, 115Vac, 2.9A, 7.5µF/370Vac, 3 Speed, (PSC)
Item
HC37AE116
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/5
• RPM: 1075
• Number of Speeds: 3
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 115Vac
• Amperage: 2.9
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
| Specification | |
|---|---|
| Motor HP | 1/5 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CCW LE | RPM | 1075 |
| Electrical | |
|---|---|
| Amps | 2.9 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 9 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 15.000000 | Shipping Weight (lbs) | 9.000000 |
