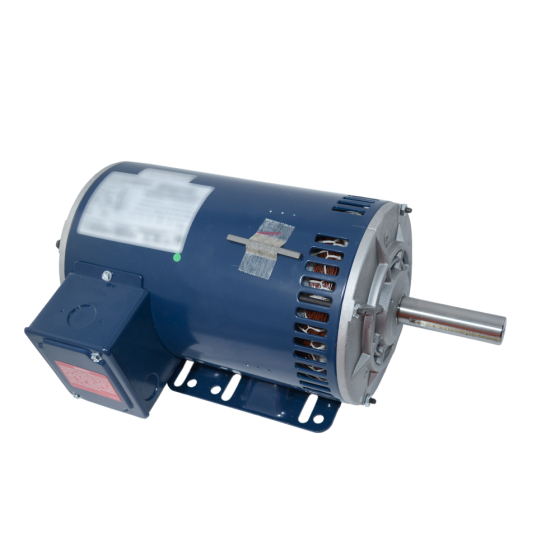

Belt Drive Blower Motor 1745RPM, 208/230/460Vac, 13.6/21.7/6.4A, 40 °C
Item
HD60ZR651
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• RPM: 1745
• Rotation: Reversible
• Voltage: 208/230/460Vac
• Amperage: 13.6/21.7/6.4
• 3 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 145TZ
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.875 x 3.13
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 145TZ | RPM | 1745 | Shaft Diameter | 0.875 | Shaft Length | 3.13 |
| Electrical | |
|---|---|
| Amps | 13.6 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 49 | Exterior Dimensions (D) (inches) | 20.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 12.000000 | Shipping Weight (lbs) | 49.000000 |
