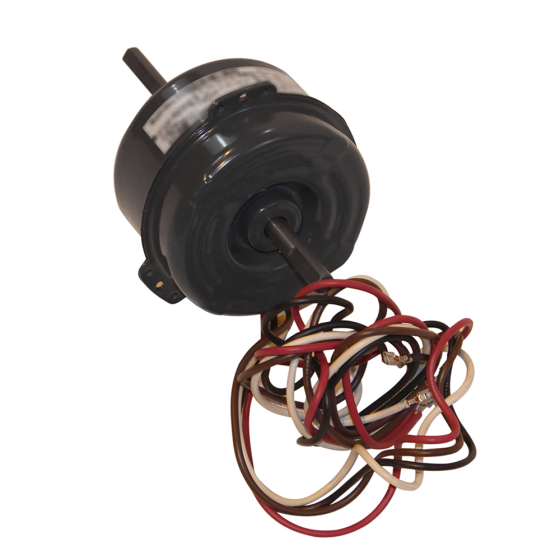

Double Shaft Direct Drive Blower Motor 3/40HP, 1125/1000RPM, 208/230Vac, 0.44A, 5µF/370Vac, 2 Speed, (PSC)
Item
HC37GE237
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/40
• RPM: 1125/1000
• Number of Speeds: 2
• Rotation: Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 0.44
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 42
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 4.10 x 2.15
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 42 | Motor HP | 3/40 | Motor Type | PSC | Number of Speeds | 2 | Rotation | CW LE | RPM | 1125 | Shaft Diameter | 0.50 | Shaft Length | 4.10 x 2.1 |
| Electrical | |
|---|---|
| Amps | 0.44 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 9 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 16.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 9.000000 |
